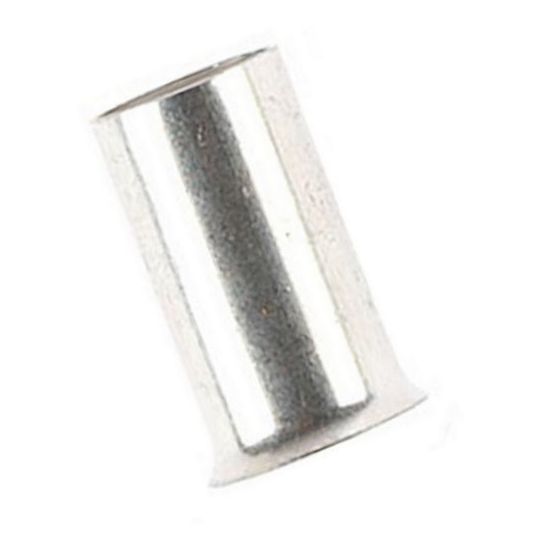

Cabac Bootlace Ferrule Un-Insulated 16mm 5.8mm Pin 12mm OAL

chevron-left

Description

chevron-down
Bootlace Ferrule Un-Insulated, 16 mm, 1 Conductors, 12 mm Pin Length, 5.8 mm Pin Diameter, HNKE, 12 mm Overall Length, Copper Sleeve, Copper Contact, 25 Pack

Key Specifications

chevron-down
Barcode (EAN-13)
9318674554912
SKU
CAABLPU1600
Brand
Cabac
Product Type
Bootlace Ferrules

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Used to terminate conductors by containing the strands in a thin walled copper sleeve that is crimped onto the conductor
  • Crimp holds on sleeve until housing screw makes connection
  • Crimp with one of our HNKE range of crimp tools
  • Halogen free
Standard Pack Size 25
UNSPSC Class 39121400
UOM EA
Vendor Product BLPU1600
Conductor Size 16 mm
Contact Material Copper
Crimping Die HNKE
Number of Conductors 1
Overall Length 12 mm
Pack Size 25 Pack
Pin Diameter 5.8 mm
Pin Length 12 mm
Sleeve Material Copper
