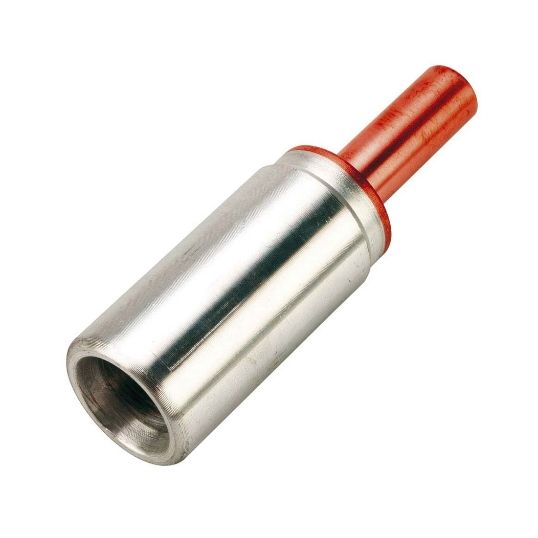

Cabac Crimp Lug Stalk Bi-Metal 35mm M12 Stud 28mm L Stalk 70mm OAL

Description

Crimp Lug, Stalk Bi-Metal, 35 mm Conductor, 8.5mm Inside Diameter, M12 Stalk, 28mm Stalk Length, 70 mm Length, 32mm Barrel, 110 MPa, Ductile Rating: 28%, Resistivity: 2.6 µOhm cm Maximum Aluminium, 1.738 µOhm cm Copper, Conductivity: 61.8% IACS Minimum Aluminium, 99.7% IACS Copper, Annealed Bi-Metal Body, Aluminium Conductor Barrel/Copper Stalk, Sleeve Material: Aluminium, -40 to 125 deg C, Number of Strands: 19/1.53, A/F Hex Die: 9 mm, Crimping Die: HT-6/35AL, 1 Crimp

Key Specifications

Barcode (EAN-13)	9318674508595
SKU	CAABS35/12
Brand	Cabac
Range Name	Stalk Lugs
Product Type	Crimp Lug Stalk Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Stalk lugs are generally used to attach aluminium cable to a copper overhead conductor Suitable for electrical equipment with clamp terminals Crimped with CABAC/MSS Power standard tools or aluminium dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BS35/12
A-F Hex Die	9 mm
Barrel Length	32 mm
Body Material	Annealed Bi-Metal
Conductive Material	Aluminium Barrel/Copper Stalk
Conductor Size	35 mm
Conductivity	61.8% IACS Min Aluminium : 99.7% IACS Copper
Crimping Die	HT-6/35AL
Ductile Rating	28%
Inside Diameter	8.5 mm
Number of Crimps	1
Number of Strands	19/1.53
Overall Length	70 mm
Resistivity	2.6 µOhm/cm Max Aluminium : 1.738 µOhm/cm Copper
Stalk Diameter	M12 Stalk
Stalk Length	28 mm
Temperature	-40 to 125 deg C
Tensile Strength	110 MPa
