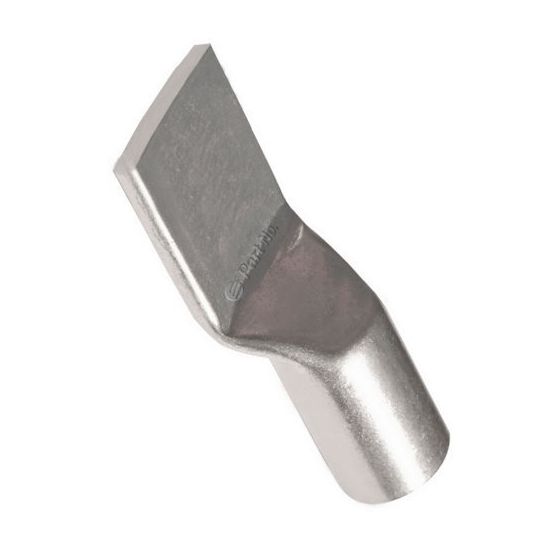

Cabac Crimp Lug Long Barrel Long Palm Copper 150mm Blank Palm 169mm OAL

chevron-left

Description

chevron-down
Long Palm Long Barrel Lugs are designed for totally air-tight cable applications. The barrels are internally silver soldered at the palm junction and the inspection window is not present. The long palm can easily accommodate two bolts, for secure termination. All lugs are standard with blank palm, and stud holes can be punched to order. These lugs can easily be modified to make special lugs by bending the palm, cropping the palm or shortening the barrel. Our manufacturing division can modify lugs to your needs, please contact our sales department. They are designed to crimp with standard hexagon dies for the standard range of copper lugs. The tooling is dimensionally compatible with standard Australian tooling.

Key Specifications

chevron-down
Barcode (EAN-13)
9318674510277
SKU
CAACAL150LPB
Brand
Cabac
Range Name
Long Barrel Long Palm Lugs
Product Type
Fret Lugs

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Made from high conductivity annealed copper
  • Crimped with CABAC and MSS Power standard tooling and copper dies
  • Complies with AS4325.1
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product CAL150LPB
A-F Hex Die 18.3 mm
Barrel Length 60 mm
Barrel Type Long
Body Material Annealed Copper
Conductive Material Annealed Copper
Conductor Size 150 mm
Crimping Die HT130-C-150
Finish Tin Electroplated
Inside Diameter 16.7 mm
Lug Length 100 mm
Lug Thickness 5.8 mm
Lug Width 32 mm
Number of Crimps 4
Overall Length 169 mm
Palm Size Blank
Palm Type Long
Stud Size Blank
Temperature -55 to 155 deg C
Tensile Strength 200 MPa
