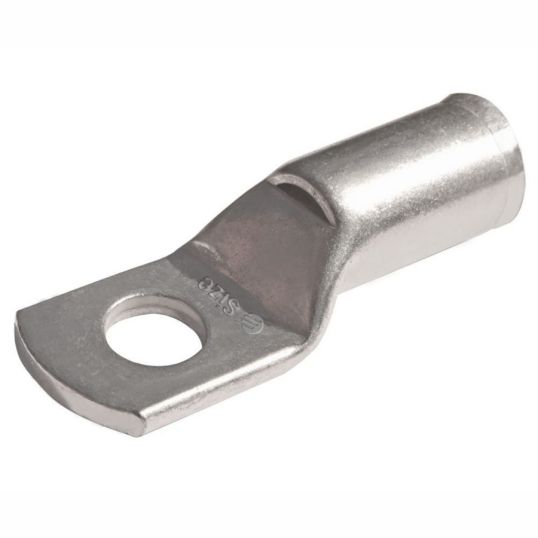

Cabac Crimp Lug Bell Mouth Copper 35mm M8 Stud 44mm OAL
Description
Designed to accommodate fine stranded flexible cable which tends to splay out after stripping. The special bell mouth funnel makes conductor insertion easy. At the top end of the cable diameter range (around 150 to 240 sq-mm ) some manufacturers cables will not fit into the nominal lug.
Key Specifications
| Barcode (EAN-13) |
9318674610588
|
|---|---|
| SKU |
CAACAL35-8BM
|
| Brand |
Cabac
|
| Range Name |
Bell Mouth Lugs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CAL35-8BM |
| A-F Hex Die | 9.2 mm |
| Barrel Length | 21 mm |
| Body Material | Annealed Copper |
| Conductive Material | Annealed Copper |
| Conductor Size | 35 mm |
| Crimping Die | HT130-C-35 |
| Finish | Tin Electroplated |
| Inside Diameter | 8.2 mm |
| Lug Length | 18 mm |
| Lug Thickness | 3 mm |
| Lug Width | 16 mm |
| Number of Crimps | 1 |
| Number of Holes | 1 |
| Overall Length | 44 mm |
| Stud Size | M8 |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 200 MPa |
