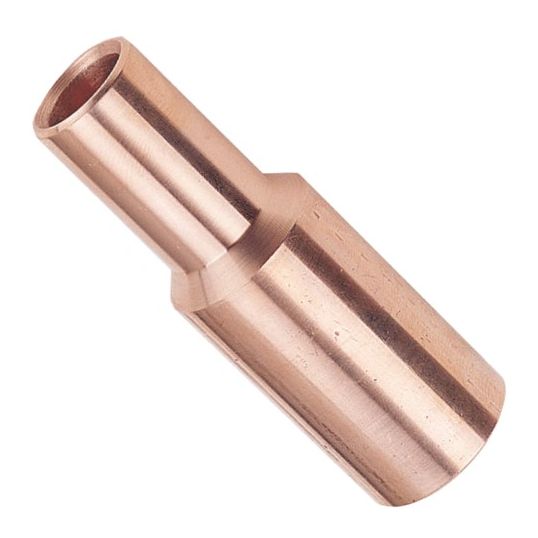

Cabac Crimp Link Reducing Copper 70mm 50mm 65mm OAL

chevron-left

Description

chevron-down
The CABAC copper reducing link range are a barrier type, so they can be used in any situation where an impermeable barrier to oils or water is required.

Key Specifications

chevron-down
Barcode (EAN-13)
9318674514473
SKU
CAACASR70/50
Brand
Cabac
Range Name
Reducing Links Copper
Product Type
Links Reducing Type

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Suitable for circular and sector stranded copper conductors
  • Application: reducing joints, fly leads, tails, etc
  • Impermeable barrier for oils and water
  • Crimped with CABAC and MSS Power standard tooling and copper dies
  • Crimp with standard Australian/NZ hex dies
  • Note: Do not crimp close to the centre barrier or the links may shear
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product CASR70/50
Conductive Material Copper
Body Material Annealed Copper
Conductivity 99.7% IACS
Ductile Rating 40%
From Conductor Size 70 mm
From Crimping Die HT130-C-70
From Inside Diameter 11.5 mm
From Number of Crimps 1
Overall Length 65 mm
Resistivity 1.738 micro-Ohm/cm
Temperature -55 to 155 deg C
Tensile Strength 200 MPa
To A-F Hex Die 10.4 mm
To Conductor Size 50 mm
To Crimping Die HT130-C-50
To Inside Diameter 9.5 mm
To Number of Crimps 1
