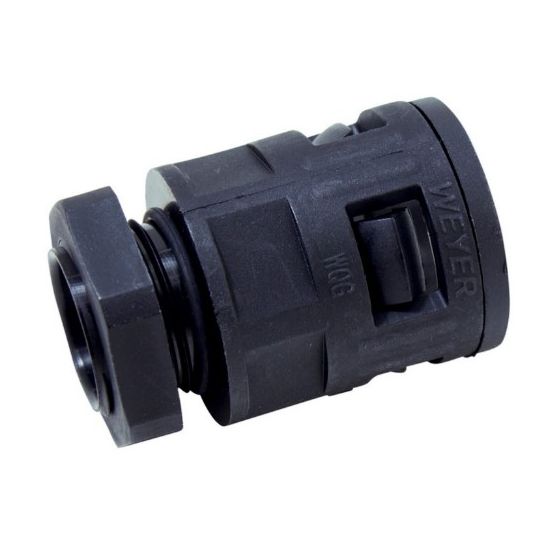

Cabflx Flexible Conduit Connector Straight 32mm Size M32 x 1.5 Thread Size Halogen Free Nylon 6 Black

Description

Flexible Conduit Connector, Fixed, Conduit Size: 32 mm, Thread Size: M32 x 1.5, Straight Angle, Halogen Free Nylon 6 Material, Black Colour, IP66 IP Rating, For Use With: Conduit Fitting, Temperature: -40 to 115 deg C

Key Specifications

Barcode (EAN-13)	9318674261568
SKU	CAACFM1-32B
Brand	Cabflx
Product Type	Connectors & Joiners

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Non-metallic straight connector for Liquid Tight conduit, halogen free PA6 nylon, extreme low fire hazard UL94 V-0 Halogen, phosphor and cadmium free, UV resistant Self-extinguishing, IP66 RoHS compliant and anti-static Self locking push fit installation onto conduit, no tool required Designed to complement the CABFLX range of low fire hazard conduits, these straight connectors are made from high quality polyamide nylon and are free from halogen, phosphor and cadmium Our high-performance fittings feature a self-locking mechanism that allows for secure, push-fit installation onto conduit, with no tools required for installation or removal These standard straight fittings offer IP66 rated ingress protection and are supplied complete with locknut
Standard Pack Size	1
UNSPSC Class	39131700
UOM	EA
Vendor Product	CFM1-32B
Angle	Straight
Colour	Black
Conduit Size	32 mm
For Use With	Conduit Fitting
IP Rating	IP66
Temperature	-40 to 115 deg C
Thread Size	M32 x 1.5
