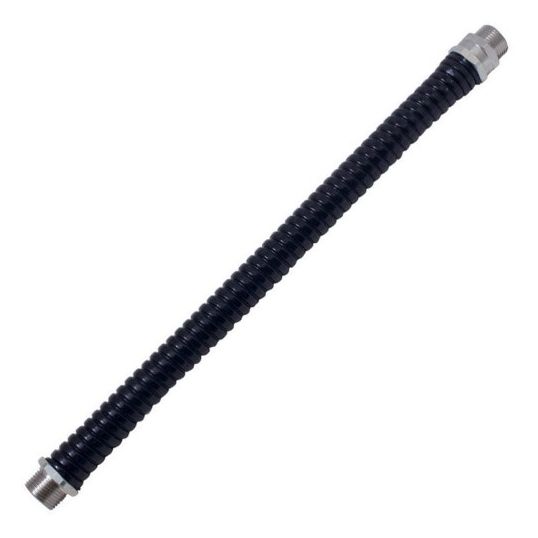

Cabflx Flexible Conduit Metal Vacuum Jacketed Liquid Tight Spiral Reinforced Extra Flexible 25mm 25M Steel/PVC Black

chevron-left

Description

chevron-down
Flexible Conduit, Metal, Vacuum Jacketed, Liquid Tight, Spiral Reinforced, Extra Flexible, 25 mm, 21 mm ID, 26 mm OD, 25 mtr, 71 mm Bend Radius, Steel, Galvanised Finish, PVC Sheath, Black Sheath, -20 to 70 deg C

Key Specifications

chevron-down
Barcode (EAN-13)
9318674266020
SKU
CAACVJC25-25
Brand
Cabflx
Product Type
Flex Conduit Liquid Tight

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • CABFLX Extra Flex is a lightweight electrical conduit designed specifically for installations where extreme flexibility is required
  • The strong, electrogalvanised steel core offers reliable mechanical protection in static, tight bend or dynamic installations
  • A thin, UV resistant PVC jacket provides enhanced moisture protection with only a minimal effect on the overall flexibility of the conduit
  • Use our Extra Flex conduit to protect electrical wiring in complex applications such as machining centres or robotics
  • The Extra Flex range also includes compatible brass fittings in fixed and swivel varieties. Alternatively, CABFLX CVJC conduit is also compatible with our Liquid Tight IP66 fittings in steel, brass or stainless-steel
Standard Pack Size 1
UNSPSC Class 39131700
UOM RO
Vendor Product CVJC25-25
Bend Radius 71mm
Conduit Size 25 mm
Inside Diameter 21mm
Outside Diameter 26mm
Temperature -20 to 70 deg C
Sheath Colour Black
