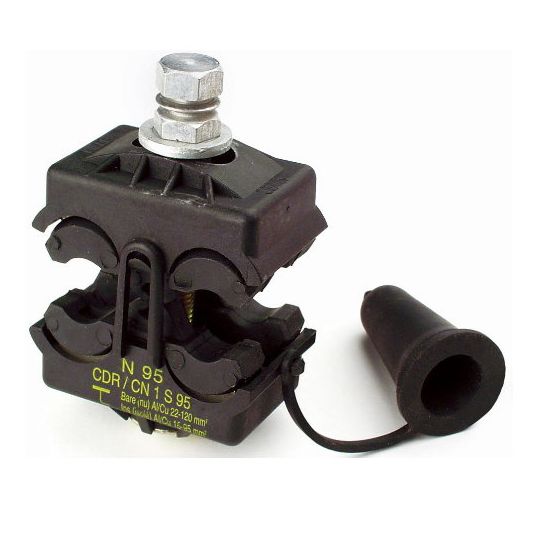

Cabac ABC Insulation Piercing Connector with Shear Head Bolts 150-22mm Brass Copper

Description

ABC Insulation Piercing Connector with Shear Head Bolts, 150-22 mm Conductor Bare, 95-16 mm Conductor Insulated, 1 Bolt, 16 N/m, Fastener A/F: 13 mm, Brass Copper Conductor, Tinned Finish, with Shear Head Bolts

Key Specifications

Barcode (EAN-13)	9318674636434
SKU	CAAIPCB150/95
Brand	Cabac
Product Type	Insulation Piercing Connectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Connects bare copper or aluminium conductors to ABC style insulated cables with conventional IPC style piercing of the insulated conductor Contact bridges made from tinned brass copper Suitable for all weather applications Connections can be made in minutes The contact bridges are made of tinned brass copper, which are designed for use with copper or aluminium conductors, which reduces the stock range Designed for all weather applications, with a grease filled rubber boot protecting the connection interface on the bare conductor, and the piercing teeth of the IPC connection Connections can be made in minutes, without time consuming crimping, and stripping Simply scratch brush the bare conductor after inserting the conductors then simply tighten the connector to shear point The bodies of the connectors are made from tough resilient glass filled nylon for long service life and UV sunlight protection Hardware is stainless steel, which does not corrode, allowing the IPC to be undone at any time in the future
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	IPCB150/95
Conductive Material	Brass/Copper
Conductor Size	150-22 mm Bare/95-16 mm Insulated
Finish	Tinned
Number of Bolts	1
Torque	16 Nm
