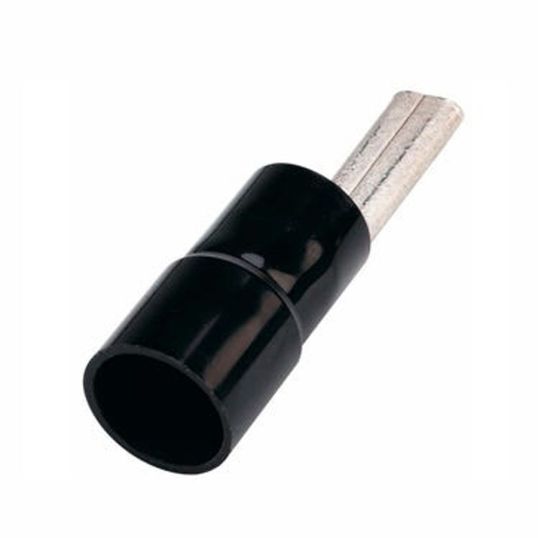

Cabac Pin Connector Insulated Double Grip Large 10mm Black

chevron-left

Description

chevron-down
Pin Connector Insulated Single Grip Large, 10 mm, K25/HNN4, Nylon Insulation, Black Insulation, 8 mm Barrel Inside Diameter, 14.5 mm Pin Length, 35 mm Overall Length, 4.2 mm Thickness

Key Specifications

chevron-down
Barcode (EAN-13)
9318674524854
SKU
CAAPC10
Brand
Cabac
Range Name
Pre-Insulated Terminals

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Insulated pin connectors for larger conductors than the conventional range of yellow terminals
  • Insulation is made from black nylon
  • Featuring funnel entry for ease of insertion
  • Accommodates fine stranded wire
Standard Pack Size 10
UNSPSC Class 39121400
UOM EA
Vendor Product PC10
Barrel Inside Diameter 8 mm
Conductor Size 10mm
Crimping Die K25/HNN4
Insulation Colour Black
Insulation Material Nylon
Overall Length 35 mm
Pin Length 14.5 mm
Thickness 4.2 mm
