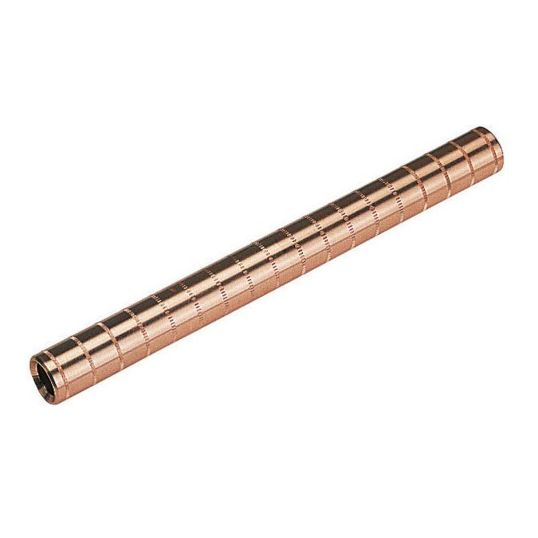

Cabac Full Tension Copper Sleeve 19/2 19/2.11 70mm

Description

Full Tension Copper Sleeve, 70 mm, Number of Strands: 19/2, 19/2.11, 200 MPa Tensile Strength, 1.738 uohm cm, 99.7% IACS Conductivity, 40% Ductile Rating, Annealed Copper, -55 to 100 deg C, 11mm Inside Diameter, 115 mm Length, A/F Hex Die: 14.8 mm, Crimping Die: M148-50, 5 Crimps

Key Specifications

Barcode (EAN-13)	9318674628835
SKU	CAAPT70N
Brand	Cabac
Product Type	Tension Sleeves

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed to accommodate stranded hard drawn copper overhead conductors Complies with full tension testing requirements of AS 1154.1 Quickly crimped using hexagonal dies and HT51 hydraulic crimper A larger hydraulic crimper may also be used Centre dimples
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	PT70N
Conductivity	99.7% IACS
Conductor Size	70 mm
Crimping Die	M148-50
Ductile Rating	40%
Inside Diameter	11mm
Number of Crimps	5
Number of Strands	19/2; 19/2.11
Resistivity	1.738 uohm cm
Temperature	-55 to 100 deg C
Tensile Strength	200 MPa
