Cabac Snap Bushing Split 25.1 mm Hole Dia Nylon 66 Black 25 Pack

Description

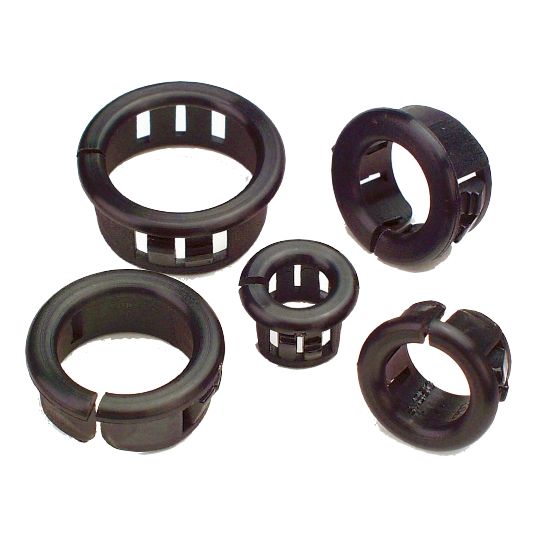

CABAC split-style Nylon snap bushing is designed to protect cables from rough, raw edges on panel holes. As the name suggests, snap bushing features self contained teeth that snap in place to provide a secure fit. Once installed, the grommet creates a smooth surface that prevents the cable from being cut or chafed.. Split bushing has several advantages over regular fixed bushing. The split allows the grommet to be fitted to a range of panel hole sizes, so precision is not as critical. Additionally, the split design makes it possible for the bushing to be retrofitted to cords or wires that are already in place.

Key Specifications

Barcode (EAN-13)	9318674639886
SKU	CAASNSB25
Brand	Cabac
Product Type	Bushing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Range taking advantage and can be retro-fitted to a cord if necessary Panel hole size is not as critical Fixed bushes snap into place Self contained teeth for secure fit
Standard Pack Size	25
UNSPSC Class	39121700
UOM	EA
Vendor Product	SNSB25
Body Material	Nylon
Inside Diameter	20.2 mm
Pack Size	25 Pack
Outside Diameter	27 mm
Mounting Hole Diameter	25.1 mm
Chassis Thickness	0.8-3.2 mm
Colour	Black
