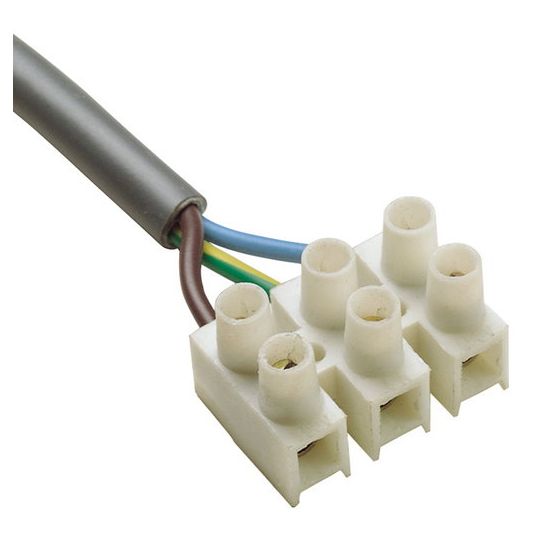

Cabac Insulated Terminal Block 12 Way 10mm Wires 30A 415V

$Cabac\Cabac_TB_12WAY.jpg$

Description

CABAC Terminal Block Strips are designed for electrical connections in a variety of applications. These terminal blocks feature wire protectors and chrome-plated steel screws to ensure secure termination. Manufactured from flame-retardant Polyamide 66, they offer excellent durability and electrical insulation. The nickel-plated brass terminals incorporate a wire protector plate, enhancing conductivity and mechanical integrity. Supplied in 12-way strips, they can be easily cut to suit installation requirements.

Key Specifications

Barcode (EAN-13)	9318674564119
SKU	CAATB30/12WAY
Brand	Cabac
Product Type	Insulated Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High quality terminal blocks with wire protector and chrome plated steel screws Nickel plated brass terminals with wire protector plate
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	TB30/12WAY
Body Material	Nylon
Conductor Material	Nickel Plated Brass
Connection Type	Screw
Connector Capacity	10 mm
Current	30 Amp
Height	22.5 mm
Number Of Ways	12 Way
Voltage	415 Volt
Temperature	105 deg C
Width	27 mm
