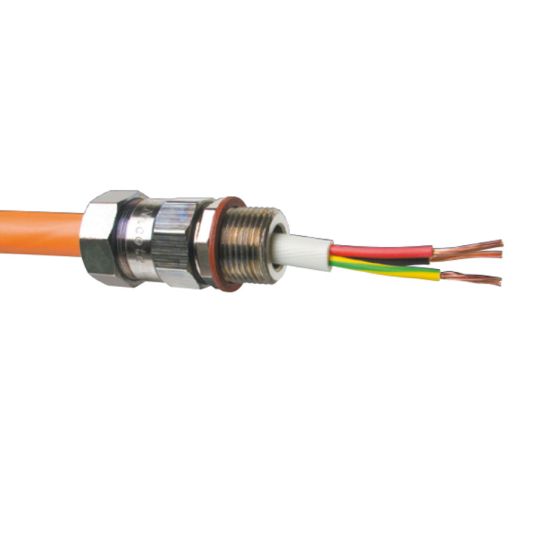

ABB Nicote General Purpose Cable Gland For Steel Wired Armoured Cable 25.6-30 M32 IP68
Description
Cable Gland Metal Armoured General Purpose, M32, 14 mm Thread Length, 1.5 mm, 25.6 mm Min. Sheath OD, 30 mm Max. Sheath OD, 22.75 mm Max. Bedding OD, 1.25 mm Min. Armour Wire, 1.6 mm Max. Armour Wire, For Use With Steel Wired Armoured Cables, 49.8 mm Width Across Corners, 55 mm Protrusion Length, IP68, Brass Body, Nickel Plated
Key Specifications
| Barcode (EAN-13) |
9318674370055
|
|---|---|
| SKU |
CAAWGN324
|
| Brand |
ABB
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | WGN324 |
| Body Material | Brass |
| Finish | Nickel Plated |
| For Use With | Steel Wired Armoured Cables |
| IP Rating | IP68 |
| Max. Armour Wire | 1.6 mm |
| Max. Bedding OD | 22.75 mm |
| Max. Sheath OD | 30 mm |
| Min. Armour Wire | 1.25 mm |
| Min. Sheath OD | 25.6 mm |
| Protrusion Length | 55 mm |
| Thread Length | 14 mm |
| Thread Pitch | 1.5 mm |
| Thread Size | M32 |
| Width Across Corners | 49.8 mm |
