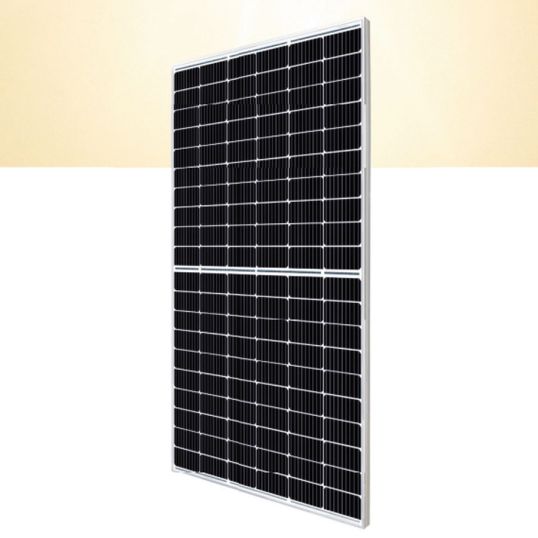

Canadian Solar HiKu Solar Panel 365W Mono-Crystalline Super High Power PERC 120 Cells Black Frame 12 Years
Description
Solar Panel, CS3L Model, Mono-Crystalline, 120 Cell, 365 Watt, 33.9 Volt, 10.78 Amp, 40.6 Volt Open Circuit, 11.47 Amp Short Circuit, 20 Amp Max. Fuse Current, 1000/1500 Volt Max. System Voltage, 19.7% Efficiency, 0-5 Watt Power Tolerance, T4-PC-1/PV-KST4/XY-UR, PV-KBT4-EVO2/XY/UTXCFA4AM, UTXCMA4AM Connector, 4 mm (IEC)/12 AWG (UL) Output Cables, IP68/3 with Bypass Diodes Junction Box, Black Anodized Aluminium Alloy Frame Construction, 3.2 mm Tempered Glass Front Glass, -0.35%/deg C Temperature Coefficient, -40 to 85 deg C, 1765 mm Length, 1048 mm Width, 40 mm Height, 21.1 kg, IEC 61215, IEC 61730:VDE, CE, MCS, INMETRO, UL 1703:CSA
Key Specifications
| SKU |
CASCS3L-365MS-BF
|
|---|---|
| Brand |
Canadian Solar
|
| Range Name |
HiKu
|
| Product Type |
Solar Panels
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | CS3L-365MS-BF |
| Cell Type | Monocrystalline |
| Certifications | IEC 61215 IEC 61730 VDE CE MCS INMETRO UL 1703 CSA |
| Connector Type | T4-PC-1/PV-KST4/XY-UR; PV-KBT4-EVO2/XY/UTXCFA4AM; UTXCMA4AM |
| Efficiency | 19.70% |
| Frame Construction | Anodized Aluminium |
| Front Glass | 3.2 mm Tempered Glass |
| Height | 40 mm |
| Item Weight | 21.1 kg |
| Junction Box | IP68/3 with Bypass Diodes |
| Max. Current | 10.78 Amp |
| Max. Fuse Current | 20 Amp |
| Max. Voltage | 33.9 Volt |
| Model | CS3L |
| Max. System Voltage | 1000/1500 Volt |
| Number Of Cells | 120 |
| Open Circuit Voltage | 40.6 Volt |
| Operating Temperature | -40 to 85 deg C |
| Output Cables | 4 mm (IEC)/12 AWG (UL) |
| Power Tolerance | 0-5 Watt |
| Short Circuit Current | 11.47 Amp |
| Temperature Coefficient | -0.35%/deg C |
| Wattage | 365 Watt |
| Width | 1048 mm |
