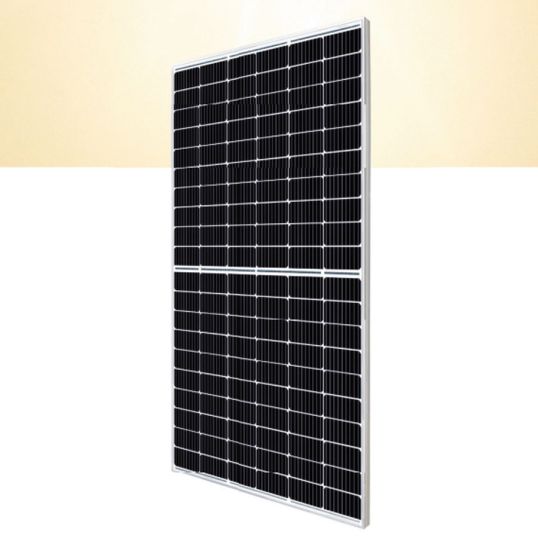

Canadian Solar HiKu Solar Panel 370 Watt Mono-Crystalline Super High Power PERC 120 Cells Black Frame 12 Years
Description
Solar Panel, CS3L Model, Monocrystalline Cell, 120 Cell, 370 Watt, 34.1 Volt Max. Voltage, 10.86 Amp Max. Current, 40.6 Volt Open Circuit Voltage, 11.54 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000/1500 Volt Max. System Voltage, 20% Efficiency, 0-5 Watt Power Tolerance, T4-PC-1/PV-KST4/XY-UR, PV-KBT4-EVO2/XY/UTXCFA4AM/UTXCMA4AM Connector, 4 mm (IEC)/12 AWG (UL) Output Cables, Junction Box: IP68/3 w/Bypass Diodes, Anodized Aluminium Frame, 3.2 mm Tempered Glass, -0.35%/deg C Temperature Coefficient, -40 to 85 deg C, 1765 mm Length, 1048 mm Width, 40 mm Height, 21.1 kg, IEC 61215/61730, VDE, CE Marked, UL 1703, CSA, 15 Years
Key Specifications
| SKU |
CASCS3L-370MS-BF
|
|---|---|
| Brand |
Canadian Solar
|
| Range Name |
HiKu
|
| Product Type |
Solar Panels
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | CS3L-370MS-BF |
| Cell Type | Monocrystalline |
| Certifications | IEC 61215/61730, VDE, CE Marked, UL 1703, CSA |
| Connector Type | T4-PC-1/PV-KST4/XY-UR, PV-KBT4-EVO2/XY/UTXCFA4AM/UTXCMA4AM |
| Efficiency | 20% |
| Frame Construction | Anodized Aluminium |
| Front Glass | 3.2 mm Tempered Glass |
| Height | 40 mm |
| Item Weight | 21.1 kg |
| Junction Box | IP68/3 w/Bypass Diodes |
| Max. Current | 10.86 Amp |
| Max. Fuse Current | 20 Amp |
| Max. Voltage | 34.1 Volt |
| Model | CS3L |
| Max. System Voltage | 1000/1500 Volt |
| Number Of Cells | 120 |
| Open Circuit Voltage | 40.6 Volt |
| Operating Temperature | -40 to 85 deg C |
| Output Cables | 4 mm (IEC)/12 AWG (UL) |
| Power Tolerance | 0-5 Watt |
| Short Circuit Current | 11.54 Amp |
| Temperature Coefficient | -0.35%/deg C |
| Warranty | 15 Years |
| Wattage | 370 Watt |
| Width | 1048 mm |
