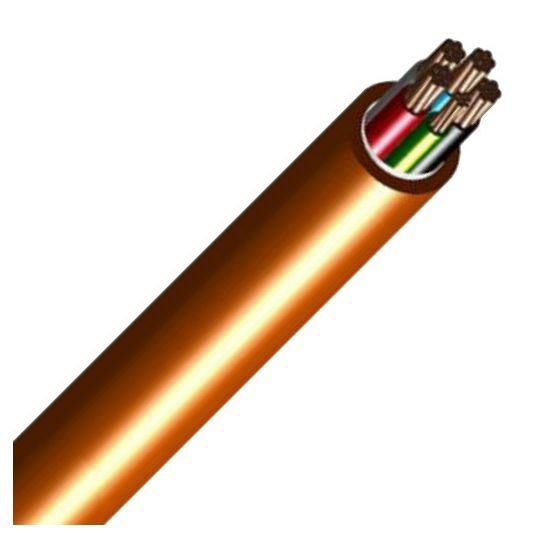

6mm Orange Circular Cable Unarmoured PVC/PVC 500mtr

$Prysmian\Prysmian_Unarmoured_4C-E.jpg$

Description

Circular Cable Unarmoured, 6mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 7/1.04mm Strands, 3.1mm Nominal Diameter, 17.1mm Overall Diameter, 2.5mm Earth Conductor, 100 mtr Length, 70mm Bend Radius, 1mm Insulation Thickness, Red/White/Blue/Black/Green/Yellow Core, PVC Insulation, PVC Sheath, Orange Sheath, 75 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9310835062656
SKU	CBL6/4CEOC1KV-5
Brand	Generic
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20199710
Bend Radius	70 mm
Conductor Type	Annealed Copper
Conductor Size	6 mm
Core Colours	Black/Blue/Red/White/Green/Yellow
Earth Conductor Size	2.5 mm
Insulation Material	PVC
Nominal Diameter	3.1 mm
Insulation Thickness	1 mm
Number of Cores	4 Core + Earth
Overall Diameter	17.1 mm
Sheath Colour	Orange
Stranding	7/1.04 mm
Sheath Material	PVC
Standards	AS/NZS 5000.1
Temperature	75 deg C
Voltage	0.6-1 kV
