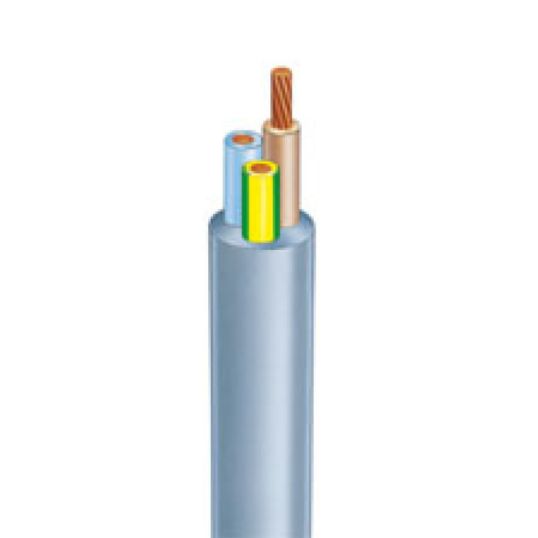

Powerlex Ordinary Duty Flexible Cable 3 Core & Earth 4mm 250/440V Copper PVC/PVC Grey
Description
Flexible Cable, Ordinary Duty, 3 Core & Earth, 4 mm, Stranded Copper, 250/440 Volt, 0.31 mm Strands, 12.3 mm Overall Diameter, Conductor Resistance: DC - 4.95 Ohm/km AC - 6.02 Ohm/km, Insulation Resistance: 11 MOhm/km, V-90 PVC Insulation, PVC Sheath, Brown Light Blue White Green/Yellow Cores, Grey Sheath, AS/NZS 3191, AS/NZS 60227
Key Specifications
| Barcode (EAN-13) |
9319215062446
|
|---|---|
| SKU |
CBLF4.0/4CODGY
|
| Brand |
Generic
|
| Range Name |
Powerlex
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | GAHR06A1004GYAA |
| Conductor Resistance | DC: 4.95 Ohm/km AC: 6.02 Ohm/km |
| Conductor Size | 4 mm |
| Conductor Type | Stranded Copper |
| Core Colours | Brown/Blue/White/Green/Yellow |
| Insulation Material | V-90 PVC |
| Insulation Resistance | 11 MOhm/km |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 12.3 mm |
| Sheath Colour | Grey |
| Sheath Material | PVC |
| Standards | AS/NZS 3191 AS/NZS 60227 |
| Stranding | 0.31 mm |
| Voltage | 250-440 Volt |
