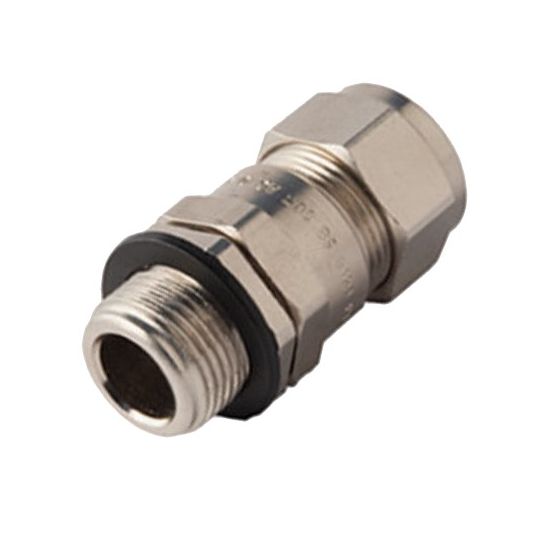

CCG Metal Cable Gland Armoured General Purpose 52-65.5mm M63 with Locknut IP66

Description

Cable Gland Metal Armoured, M63, 15 mm Thread Length, 1.5 mm, 52 mm Min. Sheath OD, 65.5 mm Max. Sheath OD, 2 mm Min. Armour Wire, 2.5 mm Max. Armour Wire, For Use With SWA and Aluminium Armoured Cables, 80 mm Width Across Flats, 90 mm Width Across Corners, 120 Nm Torque Rating, IP66, Brass Body, Thermoset Elastomer Seal, Nickel Plated, -30 to 130 deg C, 104 mm Overall Length

Key Specifications

SKU	CCG051206
Brand	CCG
Range Name	Type CW Captive Cone
Product Type	Cable Glands Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoor and outdoor use Two piece handling, no loose parts Freely rotating captive cone and inspectable cone ring, providing an inspectable armour clamp and earth bond without twisting the armouring Patented disconnect armoured clamp system for ease of inspection Provides a seal on the outer sheath of the cable sealing to IP65/66 Precision manufactured from high quality brass (nickel plated), available in aluminium or stainless steel 316/316L on request
Standard Pack Size	2
UNSPSC Class	39121400
UOM	EA
Vendor Product	051206
Body Material	Brass
Finish	Nickel Plated
For Use With	SWA and Aluminium Armoured Cables
IP Rating	IP66
Max. Armour Wire	2.5 mm
Max. Sheath OD	65.5 mm
Min. Armour Wire	2 mm
Min. Sheath OD	52 mm
Overall Length	104 mm
Temperature	-30 to 130 deg C
Seal Material	Thermoset Elastomer
Thread Length	15 mm
Thread Pitch	1.5 mm
Thread Size	M63
Torque Rating	120 Nm
Width Across Corners	90 mm
Width Across Flats	80 mm
