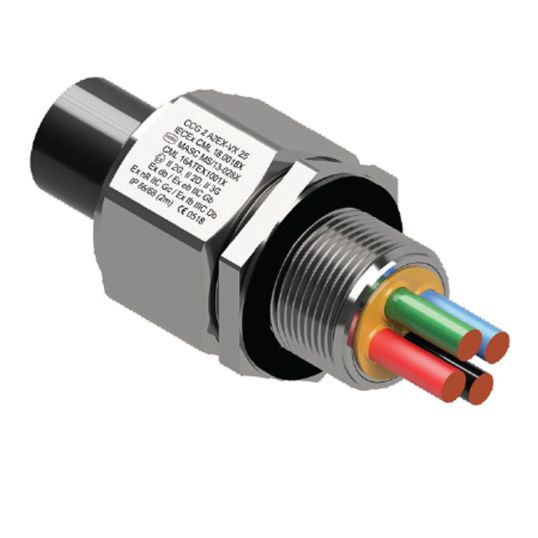

CCG Cable Gland Unarmoured Barrier 3-8.5mm M20 IP66/68

Description

Cable Gland, Unarmoured, Barrier, M20, 15 mm Thread Length, 1.5 mm Pitch, 3 mm Min. Sheath OD, 8.5 mm Max. Sheath OD, 24 mm Width Across Flats, 27 mm Width Across Corners, For: Unfilled Unarmoured Cable, Exdb IIC, Exeb IIC, Ex tb IIIC, Ex nR IIC, Number of Conductors: 6, 32.5 N/m, IP66/68, HDPE/Nylon 66/PTFE Gasket, Thermoset Elastomer Seal, Brass Body, Nickel Plated Finish, 40 mm Overall Length, -50 to 95 deg C

Key Specifications

SKU	CCG056400
Brand	CCG
Range Name	Type A2EX
Product Type	Cable Glands Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoor, outdoor, group II, III, zone 1, 2, 21 and 22 hazardous areas For unfilled hygroscopic multicore cables refer to IEC 60079-14; 9.3.2 and 10.6.2a, IEC 61892-7, 10.6 and 10.7 Instantly mixed and injected resin forms a 100% barrier seal around the individual cores of the cable Prevents explosive gases and/or liquids transmitting down the cable Precision manufactured from high quality brass For unfilled unarmoured cable
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	056400
Body Material	Brass
Finish	Nickel Plated
For Use With	Unfilled Unarmoured Cable
Gasket Material	HDPE/Nylon 66/PTFE
Hazardous Area Rating	Exdb IIC Exeb IIC Ex tb IIIC Ex nR IIC
IP Rating	IP66/68
Max. Sheath OD	8.5mm
Min. Sheath OD	3mm
Number of Conductors	6
Overall Length	40 mm
Temperature	-50 to 95 deg C
Seal Material	Thermoset Elastomer
Thread Length	15mm
Thread Pitch	1.5 mm
Torque Rating	32.5 N/m
Width Across Flats	24 mm
Thread Size	M20
Width Across Corners	27 mm
