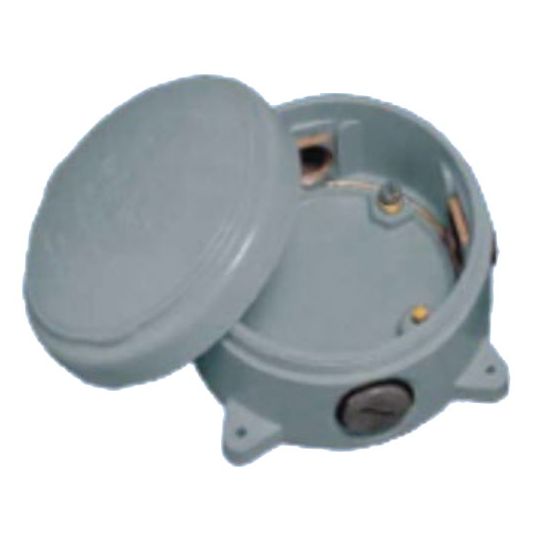

CCG Terminal Junction Box 20mm 4 Way Glass Reinforced Polyester IP68 122mm OD With Terminals

Description

Terminal Junction Box With Terminals, 20mm Entry Size, 4 Entries, 122 mm Outside Diameter, 80mm Inside Diameter, Distance Between Centres: 75 mm, 49 mm Overall Height, IP68, -30 to 130 deg C Operating, Glass Reinforced Polyester

Key Specifications

SKU	CCG102101-C4-2
Brand	CCG
Range Name	Utility Box
Product Type	Terminal Boxes & Enclosures

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Connection box for industrial applications Screw-on lid provides ease installation locked with a special key prevents unauthorized tampering and ease of installation No exposed metal parts Dust and waterproof to IP68 when used with CCG sealed cable glands One box offers 1, 2, 3 or 4 way versatility(reduced stock holding) No drilling or tapping of cable entries required Mounting studs provided for DIN rail if using CCG terminal blocks Internal earthing to rail and gland entries provided
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	102101-C4-2
Distance Between Centres	75 mm
Inside Diameter	80 mm
Entry Size	20 mm
IP Rating	IP68
Number of Entries	4 Way
Outside Diameter	122 mm
Overall Height	49 mm
Temperature	-30 to 130 deg C Operating
