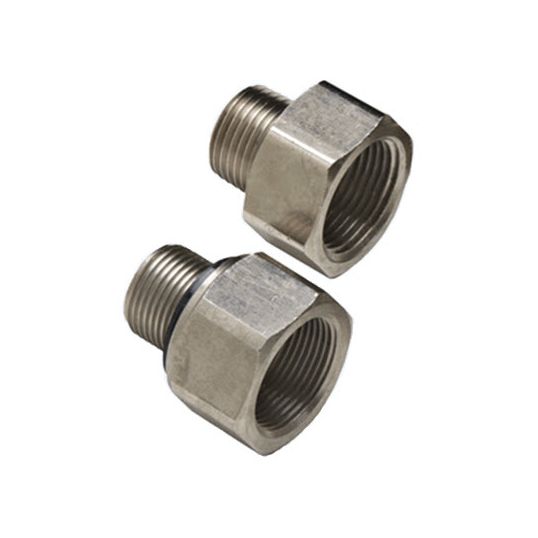

Name: Cable Gland Adaptor M40 M-M50 F NPB
SKU: CCGAM040M050S
Availability: InStock

Skip to the beginning of the images gallery

Std Pack Size

OUR P/N:

CCGAM040M050S

You need to be registered and logged in to view product details and pricing

Description

Cable Gland Adaptor, M40 Male to M50 Female, 15 mm Thread Length, Exdb, Exeb, Extb, ExR, 21 mm Hex Length, 60 mm Width Across Flats, 67.5 mm Width Across Corners, IP65/66/68, HDPE Gasket, Brass Body, Nickel Plated Finish, -20 to 95 deg C

Specifications

Additional Information

Additional Information
Brand	CCG
Range Name	Standard Adaptors
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	AM040M050S
Finish	Nickel Plated
Hex Length	21 mm
From	M40 Male
IP Rating	IP65/66/68
Product Type	Grand Adaptors & Converters
Hazardous Area Rating	Exdb Exeb Extb ExR
Temperature	-20 to 95 deg C
Thread Length	15 mm
Width Across Corners	67.5 mm
Width Across Flats	60 mm
To	M50 Female

Delivery and Returns

It is a long established fact that a reader will be distracted by the readable content of a page when looking at its layout.

Description

Technical Information TECHNICAL INFO

Specifications SPECS

Precision manufactured from high quality Brass
Converts mismatching threads to the required thread
For general industrial and hazardous area installations
The installer should check that the materials are suitable for the installation environment

Cable Gland Adaptor M40 M-M50 F NPB

CCG Cable Gland Adaptor M40 Male to M50 Female Nickel Plated Brass
