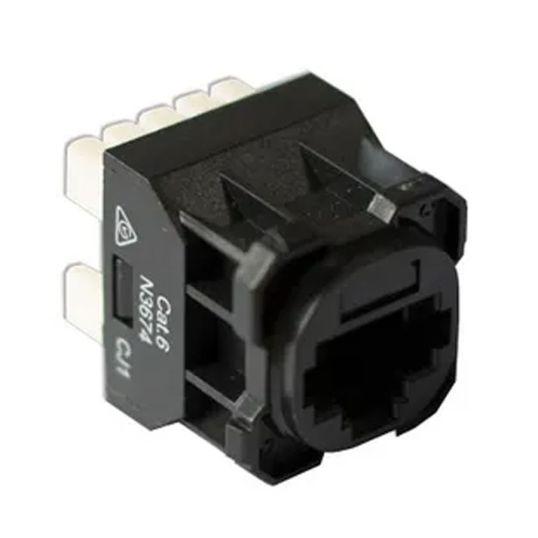

Certech Wall Plate Jack Australian Style RJ45 Cat6 UTP 180 deg Black

$Certech\Certech_JWPC6BK.jpg$ $Certech\Certech_JWPC6BK.jpg$

Description

Wall Plate Jack, 1000 Volt AC RMS at 60 Hz/1 min, 1.5 Amp, 22-26 AWG, RJ45 Connector, Cat6 UTP Cable, 20 mOhm Contact Resistance, 500 mOhm Insulation Resistance, Wiring Scheme: T568A, Flammability: UL 94V-0, Plastic Housing, 8P8C Micro Inches Gold Plated Contact Plating, Black,-40 to 70 deg C

Key Specifications

Barcode (EAN-13)	329517758
SKU	CERJWPC6BK
Brand	Certech

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	JWPC6BK
Cable Type	Cat6 UTP
Colour	Black
Conductor Size	22-26 AWG
Connector	RJ45
Contact Resistance	20 mOhm
Contact Plating Material	8P8C Micro Inches Gold Plated
Current	1.5 Amp
Flammability	UL 94V-0
Housing Material	Plastic
Insulation Resistance	500 mOhm
Temperature	-40 to 70 deg C
Wiring Scheme	T568A
Voltage	1000 Volt AC RMS at 60 Hz/1 min
