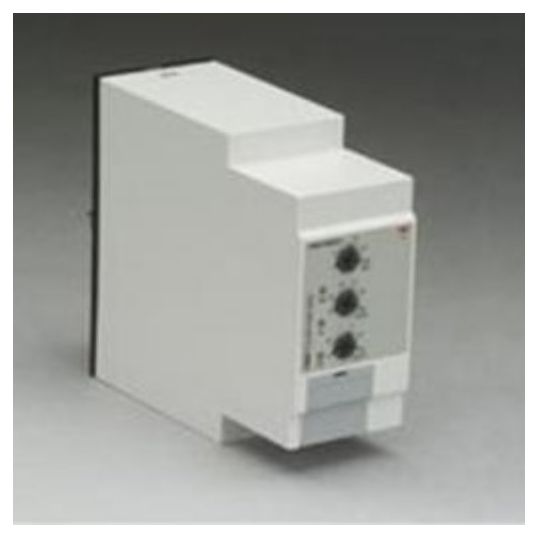

Carlo Gavazzi Overcurrent Or Undercurrent Relay 115/230V 0.1mA-10A AC/DC 0.1-5A 1Ph 1CO

Description

Overcurrent Or Undercurrent Relay, 115/230 Volt AC, 0.1-5 Amp, 0.8 Watt, 0.1mA To 10 Amp AC/DC, 1 Phase, 1CO, 10000 Electrical 30000000 Mechanical Cycles, Screw Terminal, DIN 35 Rail Mount, IP20, Body Noryl, Silver Tin Oxide (AgSnO2), -20 to 60 deg C, 80 mm Height, 22.5 mm Width, 99.5 mm Depth

Key Specifications

Barcode (EAN-13)	8030956000832
SKU	CGVPIB01CB235A
Brand	Carlo Gavazzi
Product Type	Current Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Comprehensive range of relays for monitoring of phase loss, incorrect phase sequence, phase unbalance, over / under current, over / under load, over / under frequency, and over / under voltage for various application requirements Range available in a variety of package sizes and mounting (DIN or Plug-in) to suit various preferences International certifications including ISO 9001 with wide install base ensuring delivery of a quality tested product
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	PIB01CB235A
Contact Configuration	1 Changeover
Contact Material	Silver Tin Oxide (AgSnO2)
Current	0.1-5 Amp
Depth	99.5 mm
Height	80 mm
IP Rating	IP20
Measurement Range	0.1mA-10 Amp
Operating Cycles	10000 Electrical 30000000 Mechanical Cycles
Mounting Method	DIN Rail
Phase	1 Phase
Temperature	-20 to 60 deg C
Terminal Connection	Screw
Voltage	115-230 Volt AC
Width	22.5 mm
