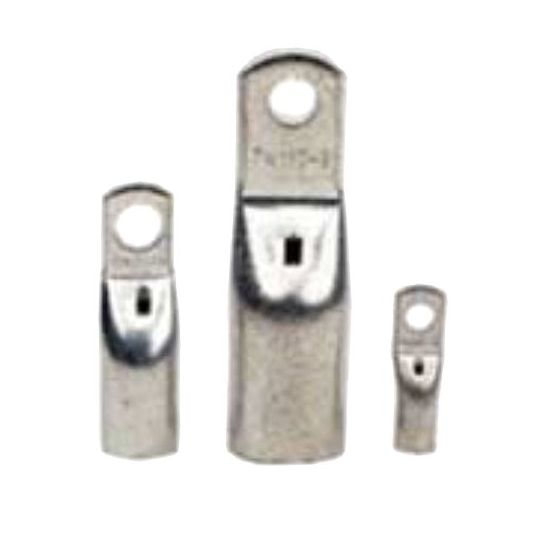

CJS Circuit Breaker Lug Narrow Palm Copper with Inspection Window 50mm M8 Stud 45.5mm OAL

chevron-left

Description

chevron-down
Circuit Breaker narrow palm cable lugs, as the name suggests, is a range of copper lugs with a reduced palm fixing area. These lugs enable connection to low voltage circuit breakers and terminal blocks. These lugs utilize standard barrel dimensions so normal crimping rules using standard tools and crimp dies still apply.

Key Specifications

chevron-down
SKU
CJS-LUG-CB-CU-50M8
Brand
CJS

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Suitable for copper conductors
  • Made from high grade pure 99.9% copper
  • Electro tin plated
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product CJS-LUG-CB-CU-50M8
Barrel Length 18 mm
Body Material Copper
Barrel Type Standard
Conductive Material Copper
Conductor Size 50 mm
Finish Tin Electroplated
Inside Diameter 9.5 mm
Lug Width 12.8 mm
Number of Holes 1
Outside Diameter 12.5 mm
Overall Length 45.5 mm
Please Note with Inspection Window
Stud Size M8
Temperature -55 to 155 deg C
