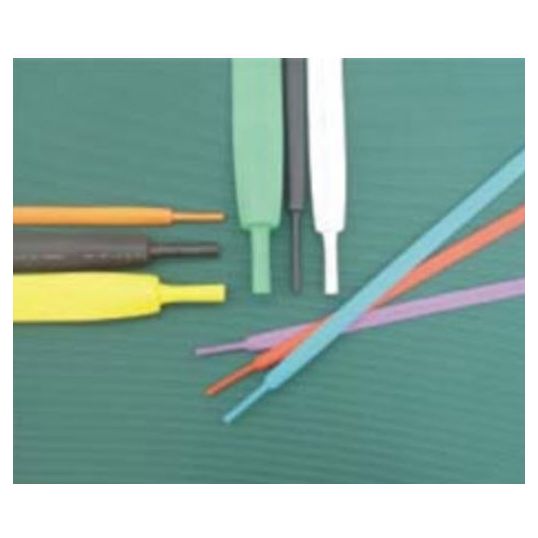

CJS ST Heatshrink Tubing Thin Wall Plain Unlined 70-35mm 1.2M Red
Description
Heat Shrinkable Soft Tube is an all-purpose, thin wall tubing suitable for many applications. It is made from flame resistant polyethylene with a minimum shrink ratio of 2:1 and an operating temperature of -55 to 130 deg c.
Key Specifications
| SKU |
CJS-ST70RD1.2
|
|---|---|
| Brand |
CJS
|
| Product Type |
Heatshrink Tubing
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121700 |
| UOM | EA |
| Vendor Product | CJS-ST70RD1.2 |
| Colour | Red |
| Elongation | 200% |
| Dielectric Strength | 15 kV/mm |
| Material | Polyethylene |
| Lining Type | Plain Unlined |
| Shrink Diameter From | 70 mm |
| Shrink Diameter To | 35 mm |
| Tensile Strength | 10.4 MPa |
| Temperature | -55 to 130 Deg C |
| Shrink Ratio | 2:1 |
| Wall Type | Thin |
