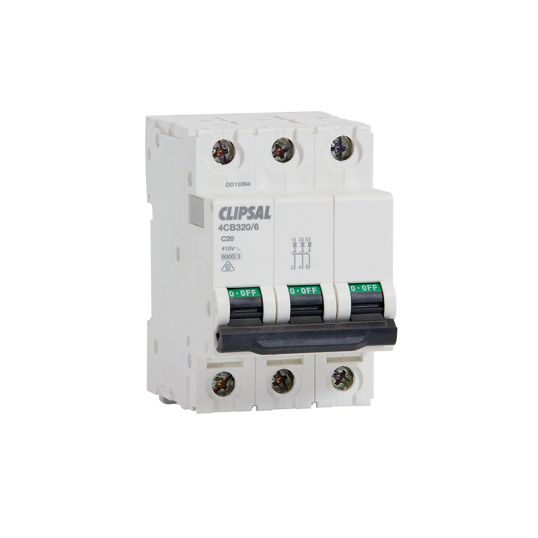

Clipsal Miniature Circuit Breaker C Curve 20Amp 6kA 3Pole 3Module 54mm DIN Rail Mount

Description

Miniature Circuit Breaker C Curve C Curve, 415 Volt, 20 Amp, 50/60 Hz, Interrupt Capacity: 6 kA, Number of Modules: 3, 54mm Module Width, Number of Poles: 3, 1, Trip Characteristic: C Curve, 2 N/m Tightening Torque, 0.75 to 16 mm Rigid, 0.33 to 10 mm Flexible/Ferrule Terminal Capacity, IP20, IP40, 20000 Cycles, DIN Rail,-25 to 70 deg C, 81mm Height x 54mm Width x 78.5mm Depth

Key Specifications

Barcode (EAN-13)	9318795014029
SKU	CLI4CB320/6
Brand	Clipsal
Range Name	Max 4
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Unique new white finish for a fresh modern look Standard characteristic is C-Curve suits most applications Base module = 18mm wide compact standardised and consistent module dimension Lift-up terminals Safer ‘no hot spot’ terminations and all cable strands are locked in Combination head screws, choice of screwdrivers 4.5, 6 and 10kA units are also fitted with bottom cog rail terminals which provides easier and faster installation with busbars Field fitted auxiliary switches, standard units for any application Field fitted shunt trips, standard units for any application
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	4CB320/6-NLA
Depth	78.5 mm
Current	20 Amp
Electrical Life	20000 Cycles
Frequency	50/60 Hz
Height	81 mm
Interrupt Capacity	6 kA
IP Rating	IP20/40
Modules	3 Module 54mm
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Phase	1 Phase
Temperature	-25 to 70 deg C
Tightening Torque	2 Nm
Voltage	415 Volt
Width	54 mm
