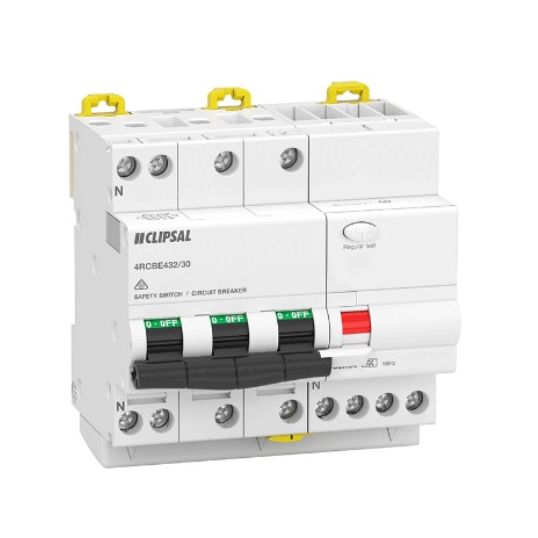

Clipsal Combination RCD Circuit Breaker RCBO 3P+N 32 Amp 380-415V AC 6 kA 5Module DIN Rail

Description

Combination RCD Circuit Breaker RCBO Type A, 32 Amp, 380-415 Volt AC, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Number of Poles: 3P + N, Number of Modules: 5, Trip Characteristic: C Curve, 0.33-10 mm (Top/Bottom) Flex, 0.75-16 mm (Top/Bottom) Rigid Terminal Connection, Tunnel, IP20, IP40, DIN Rail,-25 to 60 deg C, 91mm Height, 90mm Width, 78.5mm Depth

Key Specifications

Barcode (EAN-13)	3606489698737
SKU	CLI4RCBE432/30
Brand	Clipsal
Range Name	Max 4
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	4RCBE432/30-NLA
Current	32 Amp
Connection Type	Tunnel
Height	91mm
Depth	78.5mm
Modules	5 Module
Interrupt Capacity	6 kA
Mounting Method	DIN Rail
IP Rating	IP20/40
Number Of Poles	3 Pole
Temperature	-25 to 60 deg C
Trip Characteristic	C Curve
Terminal Connection	0.33-10 sq-mm (Top/Bottom) Flex/ 0.75-16 sq-mm (Top/Bottom) Rigid
Trip Sensitivity	30 mA
Voltage	380-415 Volt
Width	90mm
