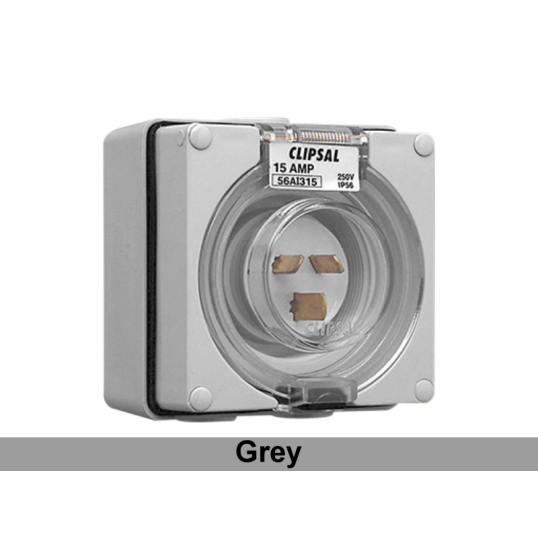

Clipsal Appliance Inlet Surface Mounting Weatherproof 1Ph 15A 250V 3 Pin Flat Grey IP66
Description
Appliance Inlet Weatherproof, 250 Volt, 15 Amp, 50/60 Hz, 1 Phase Phase, Straight Angle, 3 Pin Flat (1 + Neutral + Earth), Screw Terminal Connection, 2xM20/1xM25 Conduit Entry, 2.5-6 mm Terminal Capacity, Surface Mounting, IP66, Plastic, Grey, -25 to 75 deg C, 107 mm Height, 101 mm Width, 82 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554202828
|
|---|---|
| SKU |
CLI56AI315GY
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Appliance Inlets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 56AI315-GY |
| Angle | Straight |
| Colour | Grey |
| Conduit Entry | 2xM20/1xM25 |
| Connection Type | Screw Terminal |
| Current | 15 Amp |
| Depth | 82 mm |
| Frequency | 50/60 Hz |
| Height | 107 mm |
| IP Rating | IP66 |
| Material | Plastic |
| Mounting Method | Surface |
| Phase | 1 Phase |
| Pin Configuration | 3 Pin Flat (1 + Neutral + Earth) |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 2.5-6 mm |
| Voltage | 250 Volt |
| Width | 101 mm |
