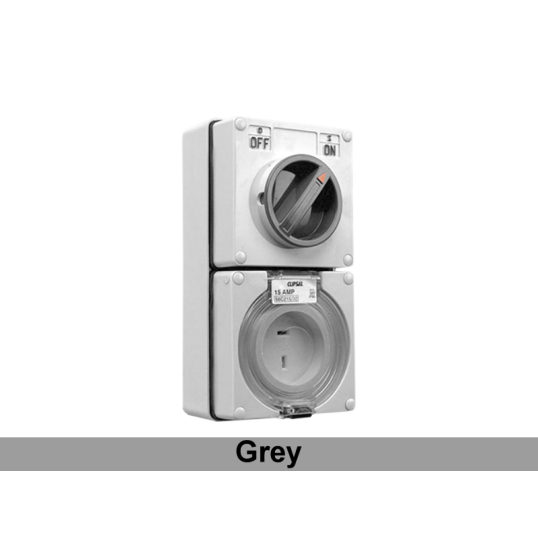

Clipsal 56 Series Switch Socket Outlet Surface Mounting Weatherproof 1Ph 15A 32V 2 Pin Polarised Grey IP66

$ClipsalNew\C0000701-GY.png$

Description

Switch Socket Outlet Surface Mounting Weatherproof, 1 Phase, 15 Amp, 32 Volt AC, 50 Hz, 1 Pole, 2 Pin Polarised, Screw, 2 x M20, 1 x M25, Terminal Capacity: 1.5 to 6 mm, Surface Mount, IP66, Polycarbonate Cover, Phosphor Bronze Pin, Grey, 204 mm Height, 101 mm Width, 83 mm Depth, -25 to 75 deg C

Key Specifications

Barcode (EAN-13)	9311554236212
SKU	CLI56C215/32GY
Brand	Clipsal
Range Name	56 Series
Product Type	Switch Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	56C215/32-GY
Colour	Grey
Conduit Entry	2 x M20/1 x M25
Connection Type	Screw
Current	15 Amp
Depth	83 mm
Height	204 mm
Frequency	50 Hz
IP Rating	IP66
Mounting Method	Surface
Number Of Poles	1 Pole
Phase	1 Phase
Pin Configuration	2 Pin Polarised
Terminal Capacity	1.5-6 mm
Temperature	-25 to 75 deg C
Voltage	32 Volt
Width	101 mm
