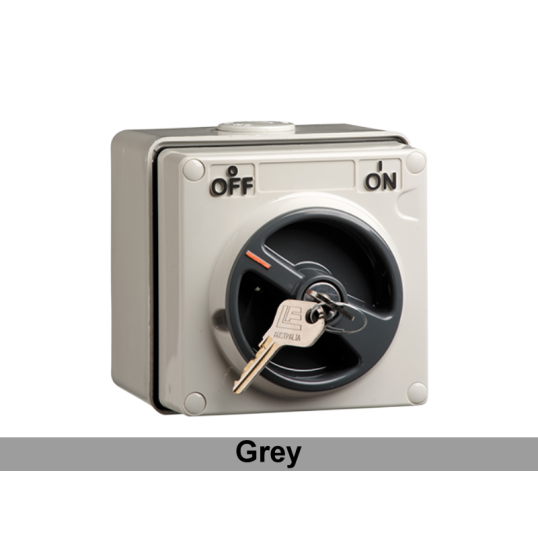

Clipsal Isolating Switch Key Operated Surface Mounting 1P 15A 250V Grey IP66
Description
Isolator Switch Key Operated, 250 Volt, 15 Amp, 50 Hz, 1 Gang, 1 Pole, ON/OFF, Rotary /Key, Screw Connection, Surface Mounting, IP66, 6-1.5 AWG Terminal Capacity, Polycarbonate, Grey, -25 to 75 deg C, 107 mm Height, 101 mm Width, 87 mm Depth, Key Lockable in OFF Position Only
Key Specifications
| Barcode (EAN-13) |
9311554282912
|
|---|---|
| SKU |
CLI56K1SW115GY
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Isolating Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 56K1SW115-GY |
| Colour | Grey |
| Connection Type | Screw |
| Current | 15 Amp |
| Depth | 87 mm |
| Frequency | 50 Hz |
| Height | 107 mm |
| IP Rating | IP66 |
| Legend | ON/OFF |
| Material | Polycarbonate |
| Method of Operation | Rotary Knobs |
| Mounting Method | Surface |
| Number Of Gangs | 1 Gang |
| Number Of Poles | 1 Pole |
| Please Note | Key Lockable in OFF Position Only |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 6-1.5 AWG |
| Voltage | 250 Volt |
| Width | 101 mm |
