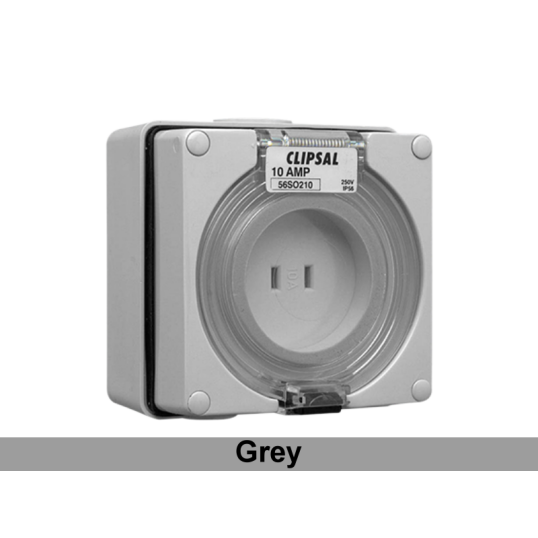

Clipsal 56 Series Socket Outlet Surface Mounting Weatherproof 1Ph 10A 250V 2 Pin Parallel Flat Grey IP66
Description
Socket Outlet Surface Mounting Weatherproof, Straight, 1 Phase, 10 Amp, 250 Volt AC, 50 Hz, 2 PIn Parallel Flat, 1P + N, Grey, IP66, Surface Mount, Polycarbonate Cover, Screw Terminal, Terminal Capacity: 1.5 to 6 mm, 107 mm Height, 101 mm Width, 77 mm Depth, -25 to 75 deg C
Key Specifications
| Barcode (EAN-13) |
9311554238247
|
|---|---|
| SKU |
CLI56SO210GY
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Socket Outlets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 56SO210-GY |
| Angle | Straight |
| Colour | Grey |
| Connection Type | Screw Terminal |
| Current | 10 Amp |
| Depth | 77 mm |
| Frequency | 50 Hz |
| Height | 107 mm |
| IP Rating | IP66 |
| Mounting Method | Surface |
| Phase | 1 Phase |
| Pin Configuration | 2 Pin Parallel Flat (1 + Neutral) |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 1.5-6 mm |
| Voltage | 250 Volt |
| Width | 101 mm |
