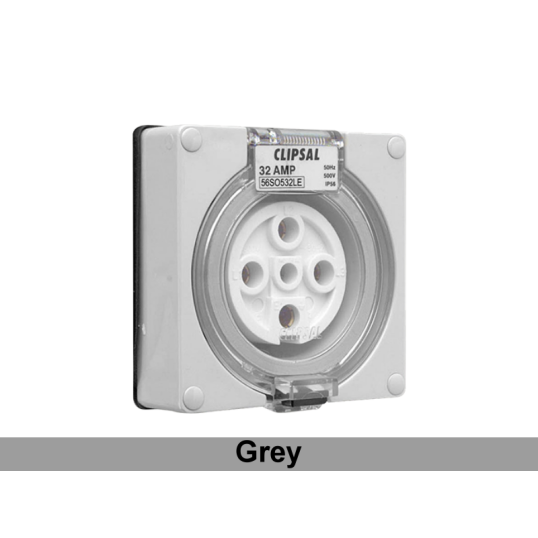

Clipsal Socket Outlet Less Enclosure 3Ph 32A 500V 5 Pin Round Grey IP66
Description
Socket Outlet, 500 Volt, 32 Amp, 50 Hz, 3 Phase Phase, Straight Angle, 5 Pin Round (3 + Neutral + Earth), Screw Terminal Connection, 2xM25/1xM32 Conduit Entry, 4-16 mm Terminal Capacity, Surface Mounting, IP66, Polycarbonate, Grey, -25 to 75 deg C, 107 mm Height, 101 mm Width, 74 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554203740
|
|---|---|
| SKU |
CLI56SO532LEGY
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Socket Outlets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 56SO532LE-GY |
| Angle | Straight |
| Colour | Grey |
| Conduit Entry | 2xM25/1xM32 |
| Connection Type | Screw Terminal |
| Current | 32 Amp |
| Depth | 74 mm |
| Frequency | 50 Hz |
| Height | 107 mm |
| IP Rating | IP66 |
| Material | Polycarbonate |
| Mounting Method | Surface |
| Phase | 3 Phase |
| Pin Configuration | 5 Pin Round (3 + Neutral + Earth) |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 4-16 mm |
| Voltage | 500 Volt |
| Width | 101 mm |
