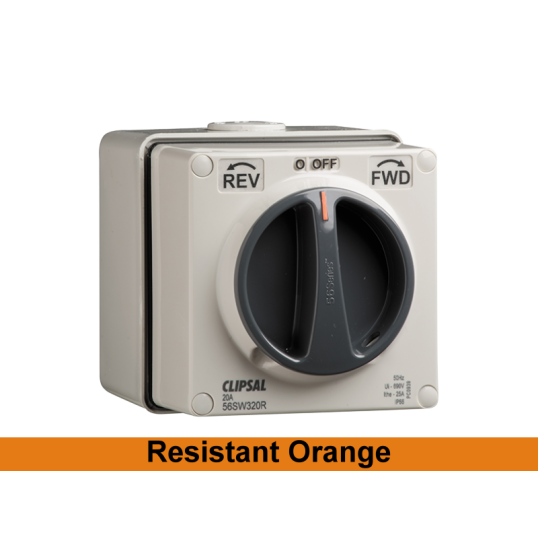

Clipsal 56 Series Reversing and Changeover Switch Weatherproof 3P 20A AC21 Surface Mount IP66

chevron-left

Description

chevron-down
Reversing and Changeover Switch Weatherproof, 500 Volt AC, AC21 Rating: 20 Amp @ 240 Volt, 20 Amp, 50 Hz, 3 Pole, Surface Mount, IP66, Polycarbonate, Grey Handle, -25 to 75 deg C, 107 mm Height, 101 mm Width, 108 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9311554239527
SKU
CLI56SW320RRO
Brand
Clipsal
Range Name
56 Series
Product Type
Reversing Switches

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product 56SW320R-RO
AC21 Rating 20 Amp AC21 @ 240 Volt
Colour Grey Handle
Current 20 Amp
Depth 108 mm
Frequency 50 Hz
Height 107 mm
IP Rating IP66
Mounting Method Surface
Number Of Poles 3 Pole
Temperature -25 to 75 deg C
Voltage 500 Volt AC
Width 101 mm
