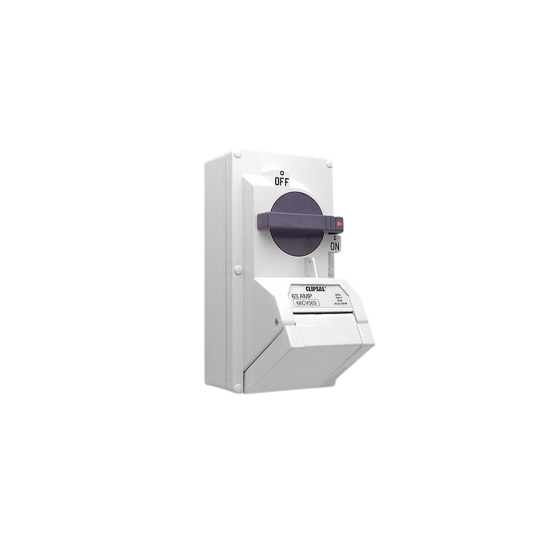

Clipsal Switch Socket Outlet Surface Mounting Weatherproof 3Ph 63A 500V 5 Pin Round Resistant Orange IP66
Description
Switch Socket Outlet Surface Mounting Weatherproof, 3 Phase, 63 Amp, 500 Volt AC, 50 Hz, 5 Pole, 5 Pin Round, Screw, Terminal Capacity: 1.5 to 6 mm, Surface Mount, IP66, Plastic, Chemical Resistant Orange, 320 mm Height, 160 mm Width, 215 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554256630
|
|---|---|
| SKU |
CLI66CV563RO
|
| Brand |
Clipsal
|
| Range Name |
66 Series
|
| Product Type |
Switch Sockets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 66CV563-RO |
| Colour | Chemical Resistant Orange |
| Connection Type | Screw |
| Current | 63 Amp |
| Depth | 215 mm |
| Frequency | 50 Hz |
| Height | 320 mm |
| IP Rating | IP66 |
| Mounting Method | Surface |
| Number Of Poles | 5 Pole |
| Phase | 3 Phase |
| Pin Configuration | 5 Pin Round |
| Terminal Capacity | 1.5-6 mm |
| Voltage | 500 Volt |
| Width | 160 mm |
