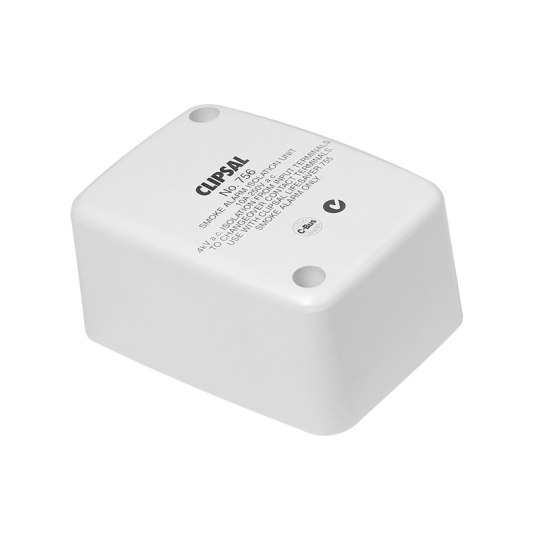

Clipsal Smoke Alarm Isolations Unit 250 VAC

Description

Smoke alarm isolation unit compatible with Clipsal Fire Tek smoke alarms only. The unit provides a set of isolated, normally open (N.O.) and normally closed (N.C.), changeover contacts permitting auxiliary devices such as sirens, strobes and/or security systems to be activated when the smoke Alarm is in the alarm state.

Key Specifications

Barcode (EAN-13)	9311554132415
SKU	CLI756
Brand	Clipsal
Range Name	FireTek
Product Type	Isolation Units

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The unit provides a set of isolated, normally open (N.O.) and normally closed (N.C.), changeover contacts permitting auxiliary devices such as sirens, strobes and/or security systems to be activated when the new 755 Smoke Alarm is in the alarm state Photoelectric detection technology for early detection and warning from hazardous smoke and fire The 756 is capable of operating correctly in the absence of mains supply and derives its power from the smoke alarm only when the smoke alarm is in the alarm state Includes surface-mount, low-profile and flush-mounted options Optional mounting bases for wireless interconnect or control of third party devices, with remote test/hush input option Combine quality with style, to complement any interior decor and provide superior protection
Standard Pack Size	1
UNSPSC Class	46191500
UOM	EA
Vendor Product	756
Colour	White
Coverage	Up to 40 Devices
Control Type	Button (Test/Hush)
Current	1 mA
Frequency	50 Hz
Humidity	0-95% RH
Material	Thermoplastic
Mounting Method	Surface
Sensor Type	Photoelectric
Temperature	0 to 50 deg C
Sound Level	85 dBA at 3 mtr
Terminal Type	Screw
Voltage	250 Volt AC
