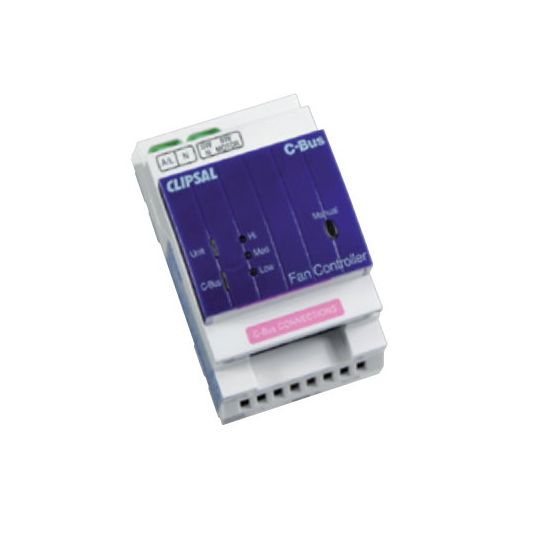

Clipsal C-Bus Fan Control Relay DIN Rail-Mount 1 Channel 240V 1.5A without Power Supply

Description

Fan Control Relay, 100-250 Volt AC, Supply: 15-36 Volt DC, 1.5 Amp, Power Rating: 350 Watt, Number of Channels: 1, Number of Modules: 3, Terminal Type: Screw, IP20, Mounting Method: DIN Rail, 210mm Width, 75.5mm Height, 66mm Depth

Key Specifications

Barcode (EAN-13)	9311554722296
SKU	CLIL5501RFCP
Brand	Clipsal
Range Name	C-Bus
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Single channel relay for the direct control of ceiling sweep fans Capacitor control (utilise capacitor supplied with fan) In-built capacitor bay High temperature rated (to 70 deg C) DIN rail mounted, 3m wide Up to 3-speed control of fan Programmable labels for fan speed broadcasted onto C-Bus Powered from C-Bus, draws 18mA
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	L5501RFCP
Channels	1 Channel
Current	1.5 Amp
Depth	66mm
IP Rating	IP20
Height	75.5mm
Modules	3 Module
Mounting Method	DIN Rail
Terminal Type	Screw
Width	210mm
Voltage	100-250 Volt
