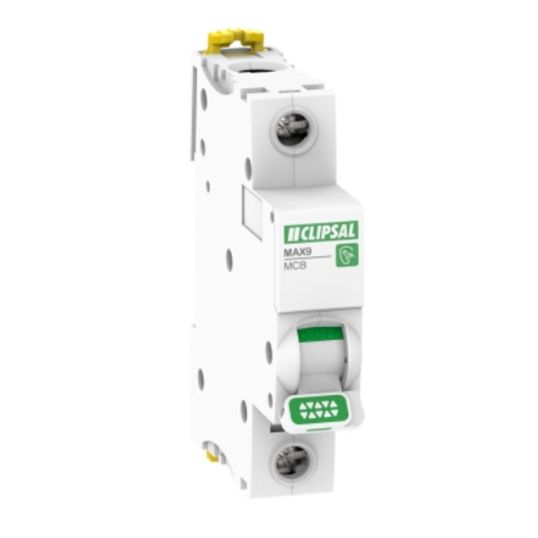

Clipsal Miniature Circuit Breaker C Curve 40Amp 6kA 1 Pole

This MAX9 product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 40 Amp in rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000 Amp at 240/415 Volt AC conforming to AS/NZS 60898 standard. This product is compliant with AS/NZS 60898 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The MAX9 is targeted to residential for individual and collective buildings. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240/415 Volt AC. The Ui rated insulation voltage is 500 Volt AC. The operating frequency is 50/60 Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9 mm. The product colour is white (RAL9003). The dimensions are (W) 18 mm x (H) 85 mm x (D) 75 mm. According to AS/NZS 60898 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25 to 70 deg C. The storage temperature is -40-85 deg C.
