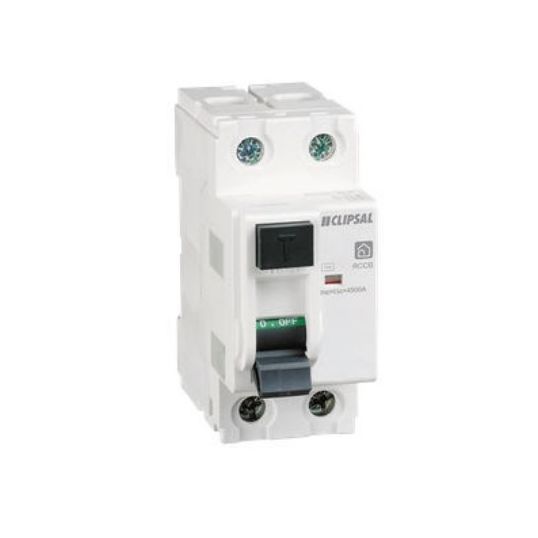

Clipsal Safety Switch RCCB Instantaneous 2Pole 40A 250VAC 30mA 2Module 36mm DIN Rail Mount
Description
Safety Switch RCCB Instantaneous Type, 250 Volt AC, 40 Amp, 30 mA Trip Sensitivity, 2 Modules, 36mm Module Width, 2 Poles, IP20 Conforming to IEC 60529, IP40 Conforming to IEC 60529, DIN Rail,-5 to 40 deg C, 81mm Height x 36mm Width x 75mm Depth
Key Specifications
| Barcode (EAN-13) |
9318795000312
|
|---|---|
| SKU |
CLIRCD240/30
|
| Brand |
Clipsal
|
| Range Name |
Resi MAX
|
| Product Type |
Safety Switches RCCB
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 60 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | RCD240/30-NLA |
| Current | 40 Amp |
| Depth | 75 mm |
| Height | 81 mm |
| IP Rating | IP20/40 |
| Modules | 2 Module 36mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 2 Pole |
| Temperature | -5 to 40 deg C |
| Width | 36 mm |
| Trip Sensitivity | 30 mA |
| Voltage | 250 Volt |
