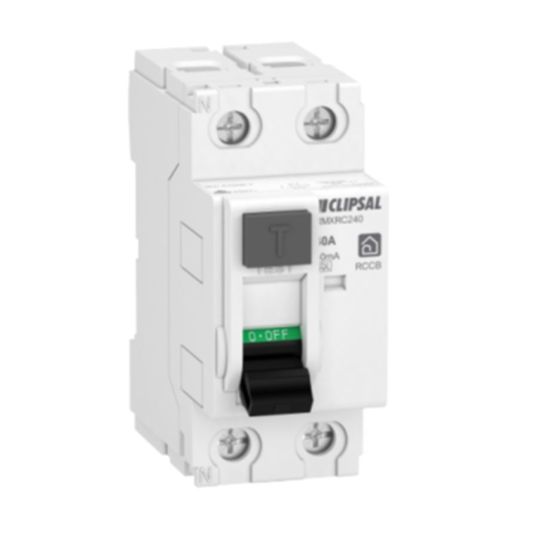

Clipsal Resi MAX Residual Current Circuit Breaker 2 Pole 240V 40A 30 mA IP20/IP40 White
Description
Residual Current Circuit Breaker, 240 Volt, 40 Amp, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 2 Pole, Tunnel Terminal, IP20/40, 4000 Cycles Mechanical Durability, 3.5 Nm Tightening Torque, 25 to 40 deg C, 81 mm Height, 36 mm Width, 73 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554815936
|
|---|---|
| SKU |
CLIRMXRC240
|
| Brand |
Clipsal
|
| Range Name |
Resi MAX
|
| Product Type |
Residual Current Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | RMXRC240 |
| Current | 40 Amp |
| Depth | 73 mm |
| Height | 81 mm |
| Frequency | 50 Hz |
| Interrupt Capacity | 6 kA |
| IP Rating | IP20/40 |
| Mechanical Durability | 4000 Cycles |
| Number Of Poles | 2 Pole |
| Terminal Type | Tunnel |
| Tightening Torque | 3.5 Nm |
| Temperature | 25 to 40 deg C |
| Width | 36 mm |
| Trip Sensitivity | 30 mA |
| Voltage | 240 Volt |
