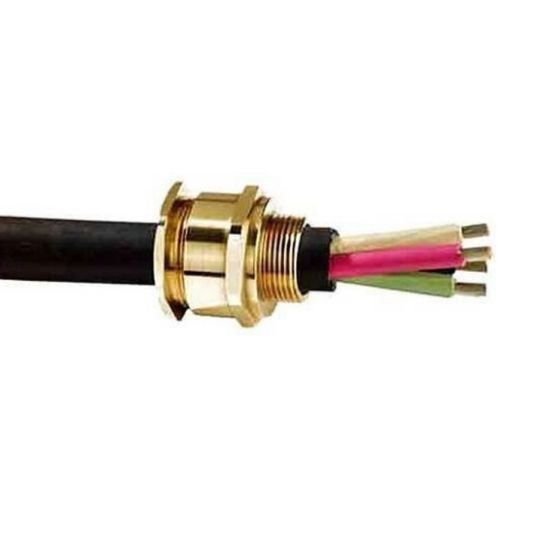

CMP Products Metal Cable Gland Unarmoured Industrial M20 6.5-14mm Nickel Plated Brass IP68

chevron-left
loader
Loading...

Description

chevron-down
Cable Gland Metal Unarmoured Industrial, M20, 10 mm Thread Length, 6.5 mm Min. Sheath OD, 14 mm Max. Sheath OD, For Use With Unarmoured Cables, 27 mm Width Across Flats, IP68, Brass Body, CMP Thermosetting Rubber Seal, Nickel Plated, -60 to 130 deg C

Key Specifications

chevron-down
Barcode (EAN-13)
5052625014691
SKU
CMP20A21RA5/A20LOE
Brand
CMP Products
Product Type
Cable Glands Unarmoured

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Stable and heavy duty design
  • Displacement seal
  • Flood protection
  • Single seal industrial cable gland
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product 20A21RA5/A20LOE
Finish Nickel Plated
Body Material Brass
For Use With Unarmoured Cables
IP Rating IP68
Min. Sheath OD 6.5 mm
Max. Sheath OD 14 mm
Seal Material CMP Thermosetting Rubber
Temperature -60 to 130 deg C
Thread Length 10 mm
Thread Size M20
Width Across Flats 27 mm
