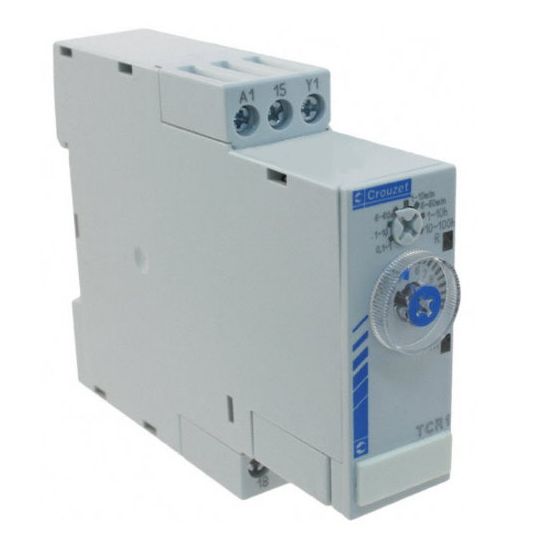

Crouzet Time Delay Relay Analogue DIN Rail Mount 1CO Function C On & Off Delay 0.1s-100Hr 24VDC/24-240V

$Crouzet\Crouzet_TCR1.jpg$ $Crouzet\Crouzet_TCR1.jpg$

Description

Time Delay Relay Analogue, 24 Volt DC/24-240 Volt AC, 8 Amp, 2000 VA/80 Watt, 1CO, Timing Function: Function C On & Off Delay, Timing Range: 0.1 sec-100 hr, 100000 Electrical, 5000000 Mechanical Cycles, Screw Terminal, DIN Rail Mount, IP20, IP40, IP50, Body Self-Extinguishing, -20 to 60 deg C, 78 mm Height, 22.5 mm Width

Key Specifications

SKU	CRZTCR1
Brand	Crouzet
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	TCR1
Contact Configuration	1 Changeover
Current	8 Amp
Operating Cycles	100000 Electrical/5000000 Mechanical Cycles
Height	78 mm
IP Rating	IP20/40/50
Mounting Method	DIN Rail
Power Rating	2000 VA-80 Watt
Temperature	-20 to 60 deg C
Terminal Connection	Screw
Voltage	24-240 Volt AC/24 Volt DC
Timing Function	Function C On & Off Delay
Timing Range	0.1 Second-100 Hours
Width	22.5 mm
