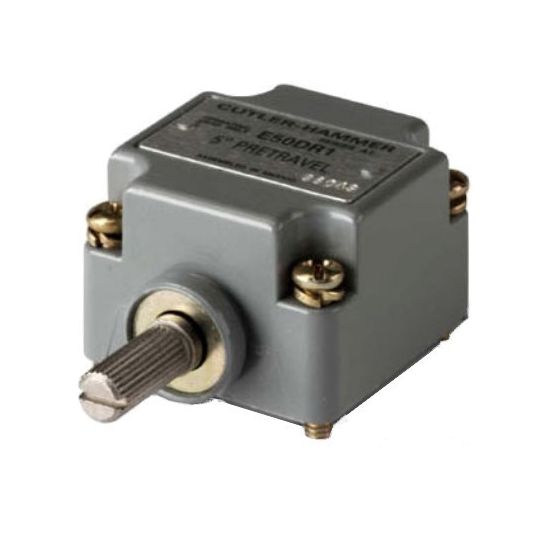

Eaton Cutler Hammer Limit Switch Operating Head Heavy Duty Side Rotary Standard Spring Return Die Cast Zinc Enclosure

Description

Limit Switch Operating Head Heavy Duty, Side Rotary Standard Spring Return Actuator, NEMA 1/3/3S/4/4X/6/6P/13, Die Cast Zinc Body, 10 to 200 deg F, 1.05 in Length, 2.46 in Height, 1.54 in Width

Key Specifications

Barcode (EAN-13)	10782113290567
SKU	CUTE50DR1
Brand	Eaton Cutler Hammer
Range Name	E50 Series
Product Type	Limit Switch Heads

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Modular, plug-in components (head, body and receptacle) provide application flexibility, reduced inventory and less downtime Chemical-resistant Viton gaskets, seals and boots are standard, and so are captive, posi-drive screws??? The switches have terminal identification on the nameplate for a visual wiring checkout without guesswork. Heads and switch bodies can be replaced without rewiring?? 600 Volt rating, ridge-topped contacts and wiping action ensure continuity even to logic level circuits Keyed, four-direction head positioning Standard 5 deg pre-travel and 90 deg total travel Rotary heads are field convertible CW, CCW, or both, without special tools
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	E50DR1
Actuator Type	Side Rotary Standard Spring Return
Body Material	Die Cast Zinc
Height	2.46 inch
NEMA Rating	NEMA 1/3/3S/4/4X/6/6P/13
Temperature	10 to 200 deg F
Width	1.54 inch
