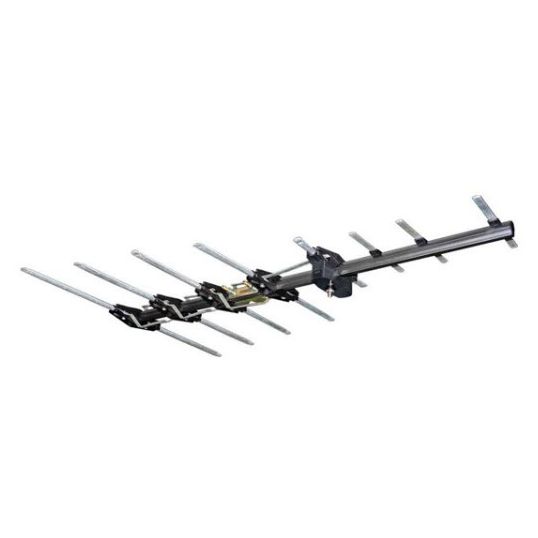

Digitek Combination Antenna 6-12 VHF 28-35 UHF Channel 11 dB VHF/4 dB UHF Gain 12 Element

$Digitek\Digitek_01ACD12L.jpg$

Description

Combination Antenna, 6-12 VHF, 28-35 UHF Channels, 11 dB VHF/4 dB UHF Gain, >11 dB VHF/>23 dB UHF Front to Back Ratio, 50 Hz, 12 Element, F-Type Balun, 1060 mm Length x 710 mm Width x 80 mm Height

Key Specifications

Barcode (EAN-13)	9340591004249
SKU	DGT01ACD12L
Brand	Digitek

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	F-Type Balun with LTE Low Pass Filter Snap out reflectors Stainless Steel screws on connection points Heavy Duty construction on all components Designed & engineered in Australia for Australianconditions & Australian digital television transmissions Heavy-duty elements
Standard Pack Size	10
UNSPSC Class	43221700
UOM	EA
Vendor Product	01ACD12L
Balun Type	F-Type
Channels	6-12 VHF 28-35 UHF
Dimensions	1060 mm Length x 710 mm Width x 80 mm Height
Frequency	50 Hz
Front to Back Ratio	>11 dB VHF/>23 dB UHF
Gain (db)	11 dB VHF/4 dB UHF
Number of Elements	12 Elements
