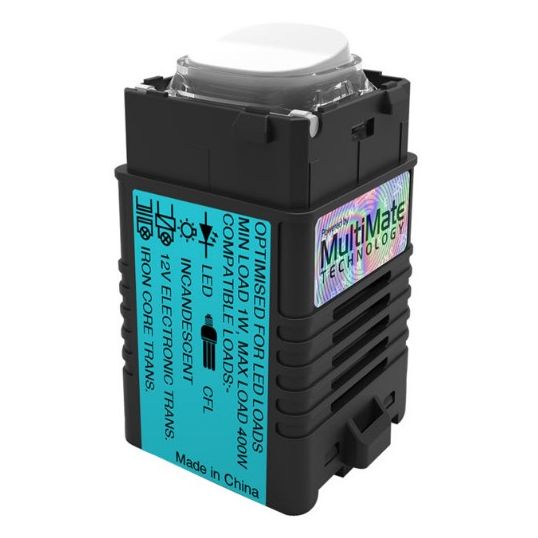

Diginet Light Dimmer Mechanism Push Button Multi Way 220/240V 400W ON/OFF LED Indicator White

chevron-left

Description

chevron-down
The LED smart+ Push Button Dimmer features a built-in on/off switch and new MultiMate technology built-in multi-way control which allows you to dim from multiple locations for the first time without the need for extra wires or an expensive control system.

Key Specifications

chevron-down
Barcode (EAN-13)
9319250620076
SKU
DIGMMDM/PB
Brand
Diginet

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Built-in multiway control
  • Multimate technology allows multi way dimming or switching with no extra wires
  • Suitable for both retrofit and new installations
  • Programmable to minimum level, maximum level, kick start, off state indicator and more
  • Active only two wire connection, no neutral required
  • Push and hold to dim up/down
  • No separate switch required, built-in tap on/tap off switch
  • Illuminated halo with interchangeable coloured bezels blue/green/orange/clear
  • Dim to off with most LED light sources
  • Kid’s bedroom mode - Double tap when ON to dim down over 30 minute
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product MMDM/PB
Colour White
Control Type Pushbutton
For Use With Wall Switch Plate Apertures
Frequency 50 Hz
Height 45 mm
Legend LED INDICATOR
IP Rating IP20
Mounting Method Wall
Switch Function On/Off Button
Temperature 0 to 50 deg C
Voltage 220-240 Volt
Wattage 400 Watt
Width 24 mm
