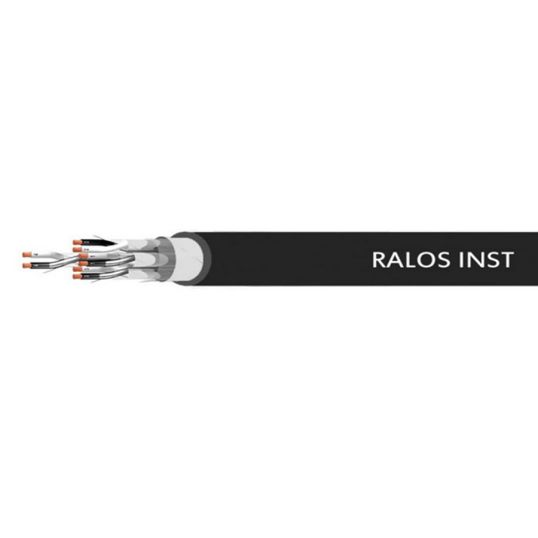

DKSH Ralos Instrumentation Cable Unarmoured 2 Pair Individually & Overall Screened 0.5mm 110/150V PVC/AL/PVC Black

chevron-left

Description

chevron-down
Instrumentation Cable, Unarmoured, High Temperature, 2 Pair, Individually and Overall Screened, 0.5 mm, Class 2 Annealed Bare Copper, 110/150 Volt, 8 mm Overall Diameter, 40 mm Bend Radius, 0.4 mm Insulation Thickness, 0.7 mm Sheath Thickness, Aluminium/Polyester Tape Screen, V-90 PVC Insulation, 5V-90 PVC Sheath, Black White & Numbered Cores, Black Sheath, -20 to 90 deg C, AS/NZS 3808

Key Specifications

chevron-down
SKU
DKSINS2P0.5ESCSBK
Brand
DKSH
Product Type
Instrumentation Cable Unarmoured High Temperature

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 26121600
UOM MTR
Vendor Product INS2P0.5ESCSBK
Bend Radius 40 mm
Conductor Size 0.5 mm
Conductor Type Class 2 Annealed Copper
Core Colours Black/White Numerals
Insulation Material V-90 PVC
Number of Pairs 2 Pair
Insulation Thickness 0.4 mm
Overall Diameter 8 mm
Screen Format Individual & Overall Screened
Screen Material Aluminium/Polyester Tape
Sheath Colour Black
Sheath Thickness 0.7 mm
Sheath Material 5V-90 PVC
Standards AS/NZS 3808
Temperature -20 to 90 deg C
Voltage 110-150 Volt
