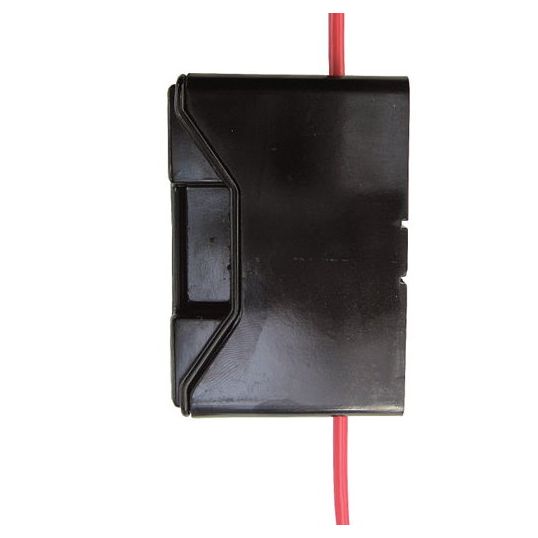

IPD Fuse Holder BS88 B1/B2 200A 690VAC Front Wiring Black For TBC/TC/TF HRC Bolt-In Fuse Link

Description

Fuse Holder, 690 VAC, 200 Amp, 120 mm Cable, Fuse Holder Code: BS88 B1/B2, For Use With: TBC/TC/TF HRC Bolt-In Fuse Links, Front Wiring Connector, Rated Breaking Capacity: 80 kA, M6 Screw Mounting, Black, 216mm Height x 70mm Width x 137mm Depth

Key Specifications

Barcode (EAN-13)	5050096021484
SKU	EEFRS200H
Brand	IPD
Range Name	Red Spot
Product Type	Fuse Holders

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Insulating sleeves to protect cable entry Full shrouded contacts, IP20 degree of protection Made from tough flame retardant non-hydroscopic material Anti-vibration contact design Interference fit contacts for low watts loss
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	RS200H
Cable Size	120 sq-mm
Colour	Black
Current	200 Amp
Connector Type	Front Wiring
Dimensions	216mm Height x 70mm Width x 137mm Depth
For Use With	TBC/TC/TF HRC Bolt-In Fuse Links
Fuse Holder Code	BS88 Type B1/B2
Mounting Method	M6 Screw
Rated Breaking Capacity	80kA
Voltage	690 Volt AC
