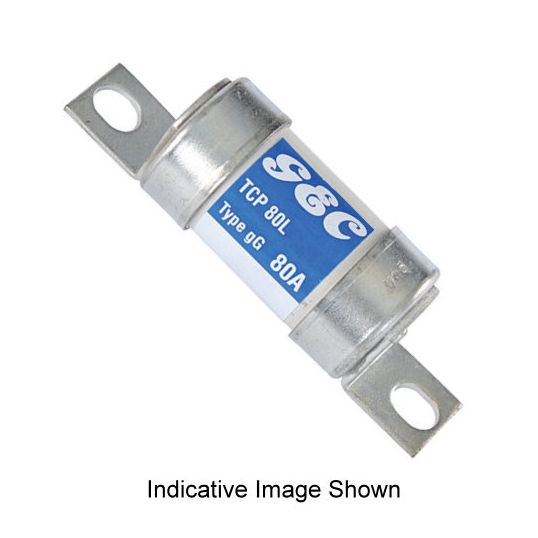

IPD Fuse Link HRC 2 Hole Fixing Bolt In Offset 100 Amp 415VAC 80 kA Class gG BS88 Type A4
Description
Fuse Link HRC 2 Hole Fixing Bolt In Offset, 415 VAC, 100 Amp, Class gG, Interrupt Capacity: 80 kA, 94mm Fixing Centres, Bolt In Offset Tag, 26.9mm Diameter x 111mm Length, BS88 Type A4
Key Specifications
| Barcode (EAN-13) |
9322017011758
|
|---|---|
| SKU |
EEFTCP100L
|
| Brand |
IPD
|
| Range Name |
Red Spot
|
| Product Type |
Fuse Links HRC Bolt In
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 5 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | TCP100L |
| Current | 100 Amp |
| Dimensions | 26.9mm Diameter x 111mm Length |
| Fixing Centres | 94mm |
| Interrupt Capacity | 80 kA |
| Tag Type | Bolt In Offset |
| Standard Reference | BS88 Type A4 |
| Voltage | 415 Volt AC |
| Utilisation Category | Class gG |
