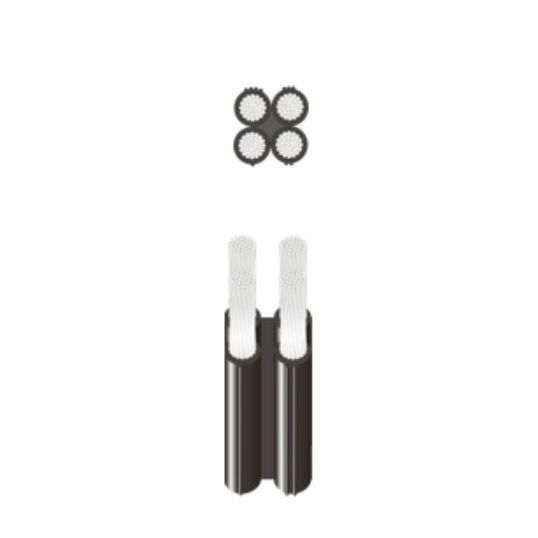

Electra 25mm 4 Core Aluminium Aerial Bundled Cable Black
Loading...
Description
Aerial Bundled Cable, 25 mm, Aluminium, 4 Core, 0.6-1 kV, 97 Amp, 7/2.14 mm Strands, 135 mm Bend Radius, 1.3 mm Insulation Thickness, 3.92 kN Tensile Strength, X-90 XLPE Insulation, Black Insulation, 90 deg C, AS/NZS 3560.1
Key Specifications
| SKU |
ELCABC4250
|
|---|---|
| Brand |
Electra
|
| Product Type |
Cables Aerial
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | ABC4250 |
| Bend Radius | 135 mm |
| Conductor Size | 25 mm |
| Conductor Type | Aluminium |
| Current | 97 Amp |
| Insulation Colour | Black |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 1.3 mm |
| Number of Cores | 4 Core |
| Standards | AS/NZS 3560.1 |
| Stranding | 7/2.14 mm |
| Temperature | 90 deg C |
| Tensile Strength | 3.92 kN |
| Voltage | 0.6-1 kV |
