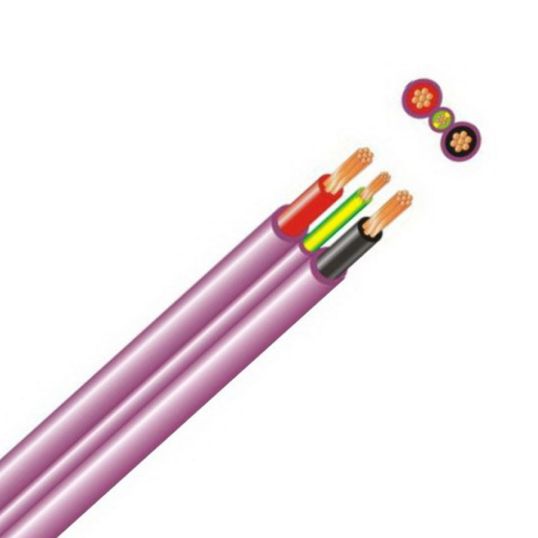

Electra 2.5mm Flat TPS Cable Black/Red 1mtr

Description

Flat TPS Cable, 2.5 mm, Annealed Copper, 450-750 Volt, 2 Core + Earth, 7/0.67 mm Strands, 12.4 mm x 5.5 mm Overall Diameter, 2.5 mm Earth Conductor, 1 mtr Length, 0.7 mm Insulation Thickness, 1 mm Sheath Thickness, Red/Black Core, V-90HT PVC Insulation, Non-Migratory V-90HT PVC Sheath, Purple Sheath, -50 to 90 deg C, AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	ELCSRF3025VHT
Brand	Electra
Product Type	Flat TPS Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	SRF3025VHT
Conductor Size	2.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/Red
Earth Conductor Size	2.5 mm
Insulation Material	V-90HT PVC
Insulation Thickness	0.7 mm
Number of Cores	2 Core + Earth
Overall Diameter	12.4 mm x 5.5 mm
Sheath Colour	Purple
Sheath Material	Non-Migratory V-90HT PVC
Sheath Thickness	1 mm
Standards	AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808
Stranding	7/0.67 mm
Temperature	-50 to 90 deg C
Voltage	450-750 Volt
