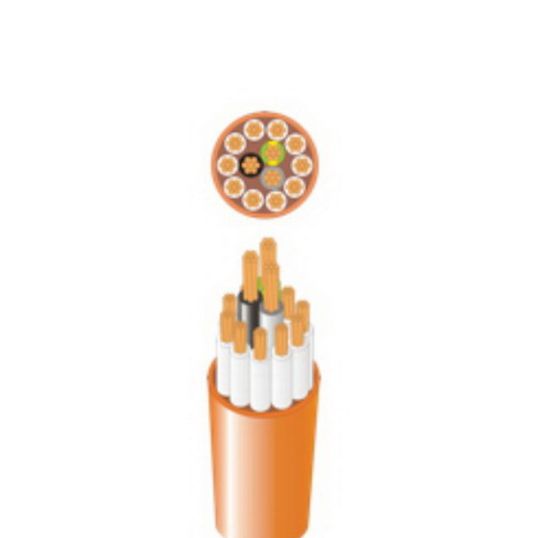

Electra Traffic Signal Control Cable 2P+E+16C 2.5+ 2.5+ 1.5mm 0.6/1kV PVC/PVC Orange
Description
Traffic Signal Control Cable, 2.5 mm Phase + 2.5 mm Earth + 1.5 mm Control, Annealed Copper, 0.6-1 kV, 2 Core + Earth + 16 Control, 7/0.67 mm + 7/0.67 mm Earth + 7/0.5 mm Control Strands, 20 mm Overall Diameter, 240 mm Bend Radius, 0.8 mm + 0.8 mm Earth + 0.8 mm Control Insulation Thickness, 7.41 Ohm/km + 7.41 Ohm/km Earth + 13.6 Ohm/km Control Conductor Resistance, Black/Grey/Green/Yellow/White Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 2276.1:2004 NSW RTA AS/NZS 1125
Key Specifications
| SKU |
ELCTSCC19C
|
|---|---|
| Brand |
Electra
|
| Product Type |
Traffic Signal Control Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | TSCC19C |
| Conductor Resistance | 7.41 Ohm/km + 7.41 Ohm/km Earth + 13.6 Ohm/km Control |
| Bend Radius | 240 mm |
| Conductor Size | 2.5 mm Phase + 2.5 mm Earth + 1.5 mm Control |
| Core Colours | Black/Grey/Green/Yellow/White Numerals |
| Conductor Type | Annealed Copper |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.8 mm + 0.8 mm Earth + 0.8 mm Control |
| Overall Diameter | 20 mm |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 2276.1:2004 NSW RTA AS/NZS 1125 |
| Stranding | 7/0.67 mm + 7/0.67 mm Earth + 7/0.5 mm Control |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
